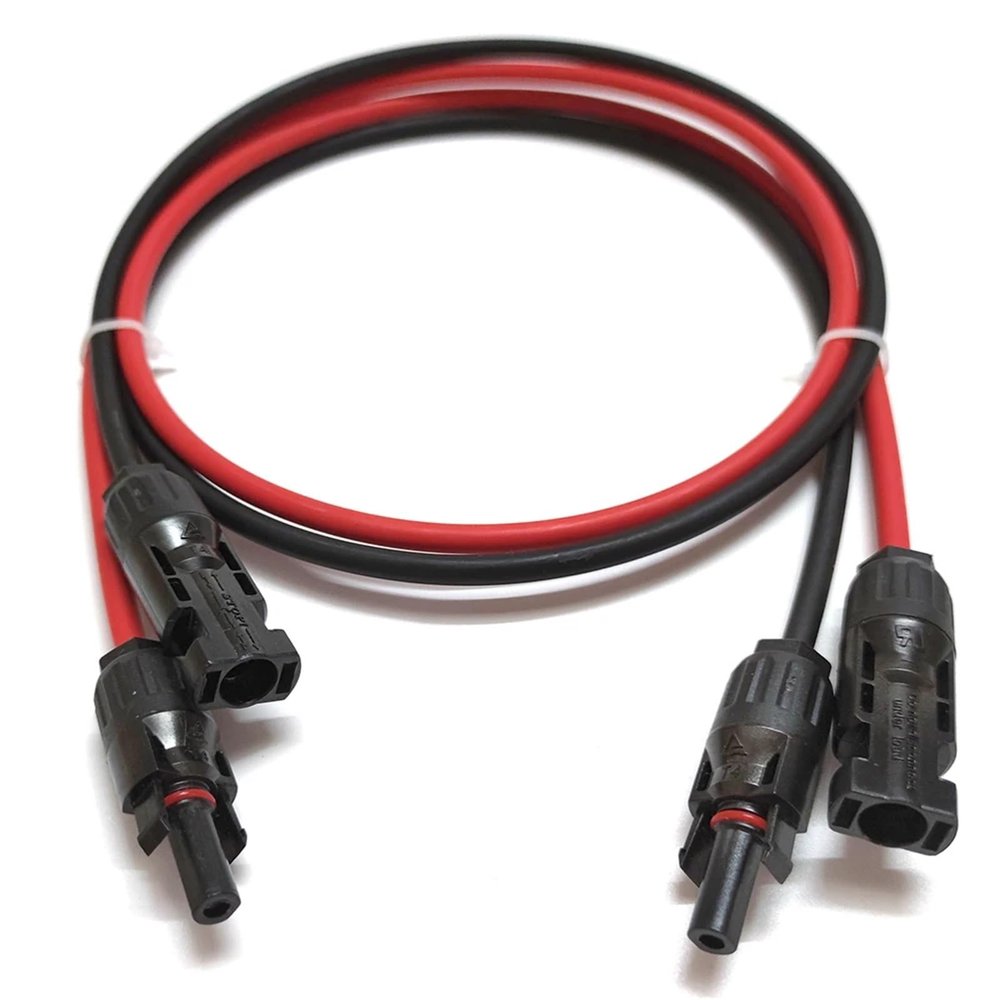

1-20 Meters Black/Red Power Solar Extension Cable 1.5/2.5/4/6mm2/16/14/12/10AWG with PV DC Connector Used in Solar Panel System(30m Black 30m red,10 AWG - 6mm2)

Description

• Lightning Cables

Lightning Cables
10mm2(8AWG)/6mm2(10AWG)/4mm2(12AWG)/2.5mm2(14AWG)/1.5mm2(16AWG)

INTRODUCTION
specifications:1.5/2.5/4/6mm
Rated voltage:AC 0.6/1KV,DC1.5KV
Color:Red / Black
Feature:Double insulation cover,TUV approved
Conductor material:stranded tin-plated ~ 99.95% oxygen-free copper
Outer Sheath:Halogen-free low-smoke polyolefin(XLPO)
Inner Insulation:Halogen-free low-smoke polyolefin(XLPO)
Service life:25 years (-40 +90 )
Application:Indoor and outdoor solar installations
Fire rating:UL94-V0
Seller declaration:This itemisdouble-sheathed cable, which is not as soft assingle-sheathed cable and silicone cable, please pay attention to the distinction
Specification
Specifications
(AWG)
Sectional area (mm)
Outer Diameter
(mm)
Sheath thickness (mm)
Conductor diameter (mm)
packing
(M/coils)
6AWG
16
8.9
0.8
5.5
100
8AWG
10
7.4
0.8
4.1
100
10AWG
6 6.4
0.8
3.17
100
12AWG
4 5.7
0.8
2.58
100
14AWG
2.5
5 0.7
2.02
100
16AWG
1.5
4.5
0.7
1.58
100

==========
Model Number : Solar Extension Cable Connector
Type : Insulated
Conductor Type : Stranded
Conductor Material : Copper
Insulation Material : PVC
Insulation material : PPO
Cable material : Double XLPE
Contact material : Copper, tin plated
Rated voltage : TUV 1000V DC/ UL 600V DC
Degree of protection : IP67
Cable color : Black/ Red
Cable length : 1/2/3/4/5/8/10/15/20/30 meters
Test voltage : 6KV (50Hz, 1Min)
