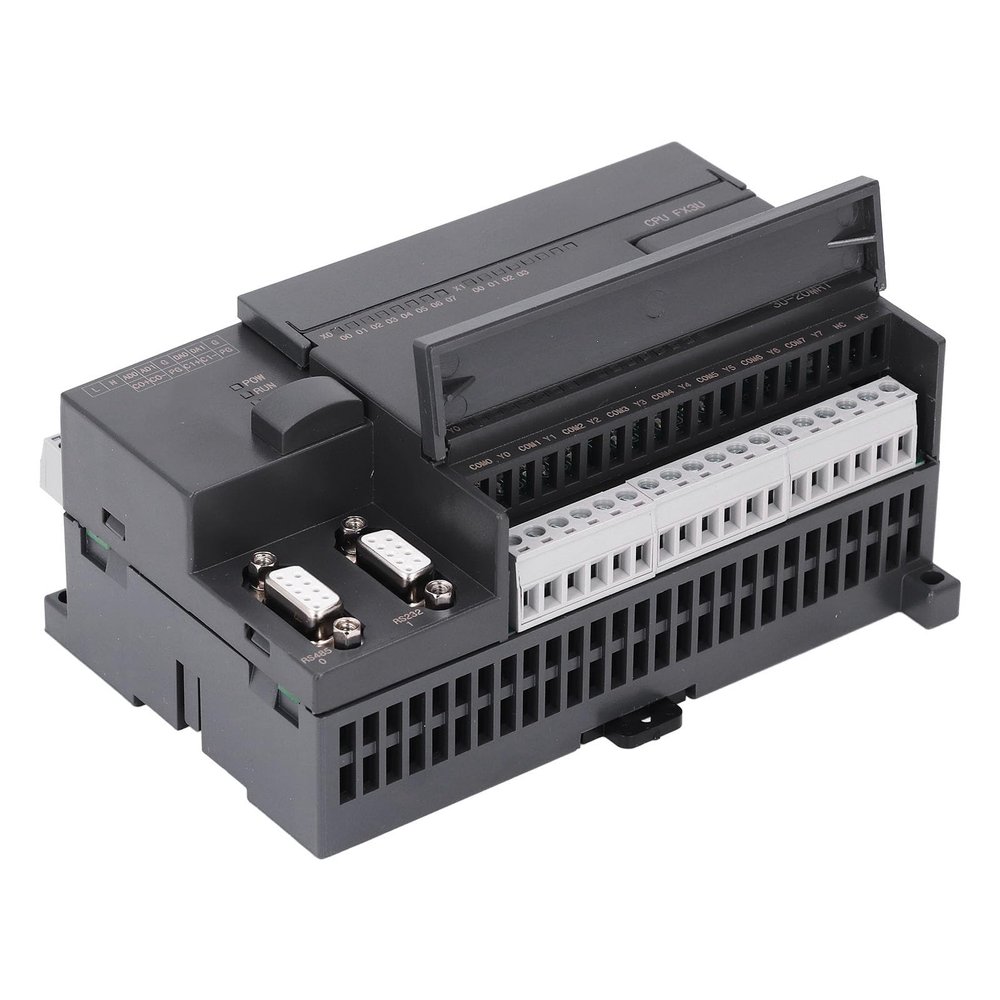

ariarly 32 Bit Chip Processor 12 in 8 Out PLC Control Board Relay Output 6 Way Analog Input, 2 Way PT100 Temperature Measurement with Clock, 232 and 485 Port

Description

• CPU and Relay Output: This industrial control board adopts a 32 bit chip processor, which has fast computing speed and large storage space; Using relay output, supporting 12 inputs and 8 outputs
• Download Comm: The download speed reaches 38.4Kbps (can also be changed to 9.6k under non normal cases); Supports for GX Developer or for GX Works2 programming, downloading, debugging, and monitoring (not support monitoring writing)
• Power Supply: The PLC control board is powered by DC24V. When the output relay is not turned on, the static current is 30mA, and an additional 10MA current is added for each circuit that is turned on
• Load: The PLC control board uses 5A current relay, which should be less than 3A for long term use; The transistor is driven by transistor, with an output current of 1A, does not exceed 500MA for long use
• Analog Input Output: This PLC industrial control board comes with 6 way analog input, 2 way PT100 temperature measurement, 3 way current 020mA, and 2 way analog output (010V voltage)

Specification:
Item Type: PLC Control Board

Material: ABS

Size: Approx. 140 x 100 x 63mm / 5.5 x 3.9 x 2.5in

Download Speed: 38.4Kb

Memory Capacity: 8000

Input Points: 12

Output Points: 8

Output Type: Relay

Output Current: 5A

Load: 24V

High Speed Count: 2 Way 60K

Pulse Output: None

Analog Input Output: 2 Way PT100 Temperature Measurement

Clock: Yes

How to Use:

Follow the instructions in the electronic user manual

packing list:

1 x PLC Control Board
