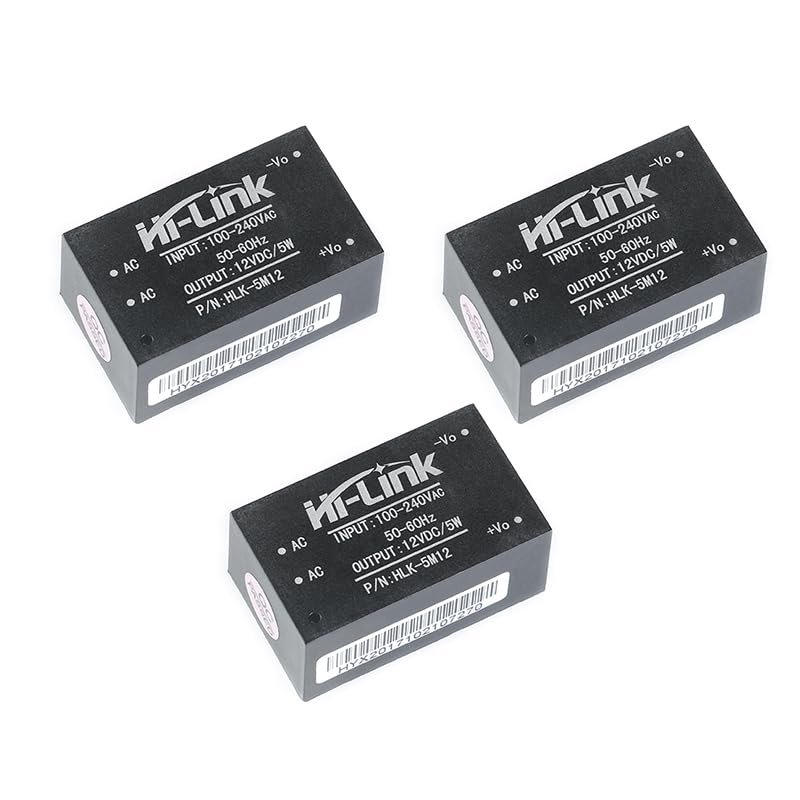

EC Buying 3PCS Mini Step-Down Power Supply Intelligent Household Switch DC Power Module AC DC Voltage Regulator Module 220V to 12V 5W AC DC Converter HLK-5M12

Description

• This module is an AC-DC low ripple switching power supply module. The 5W ultra small series module power supply is a small volume, high-efficiency module power supply.
• It has advantages such as global input voltage range, low temperature rise, low power consumption, high efficiency, high reliability, and high safety isolation. Widely used in industries such as intelligent home automation control, communication equipment, instruments and meters.
• Global universal input voltage (90 ^ 245Vac) low power consumption, green environmental protection, and no-load loss<0 1W4. Low ripple, low noise, good output short circuit and overcurrent protection, and self recovery. High efficiency, high power density, isolation and withstand voltage of 3000Vac for input and output.
• 100% full load aging and testing. High reliability, long life design, with a continuous working time of up to 100000 hours. Meets UL and CE requirements
• The product design meets EMC and safety testing requirements. Adopting high-quality environmentally friendly waterproof and thermal conductive adhesive for sealing, P is moisture-proof and vibration resistant, meeting the waterproof and dustproof IP65 standard. Economical solution with high cost-effectiveness.

1. Certification;
The product design meets UL and CE safety certification requirements.
2. Safety and electromagnetic compatibility:
The input design adopts UL certified 0.5A insurance:
The PCB board is made of double-sided copper clad foil, and the material has a fire resistance rating of 94-V0:,
Safety standards comply with UL 1012, EN60950, UL 60950
Insulation voltage 1/P-O/P: 2500Vac
Insulation resistance I/P-O/P>100M Ohms/500Vdc 25'C 70% RH
Conduction and radiation comply with EN55011, EN55022 (CISPR22)
Electrostatic discharge IEC/EN 61000-4-2 level 4 8kV/1 5kV
Radio frequency radiation immunity IEC/EN 61000-4-3
3. Design of temperature rise safety regulations:
At room temperature, the maximum temperature rise on the internal surface of the power supply capacitor, main converter, etc. shall not exceed 90 : the temperature rise on the surface of the shell the maximum temperature shall not exceed 60 .
