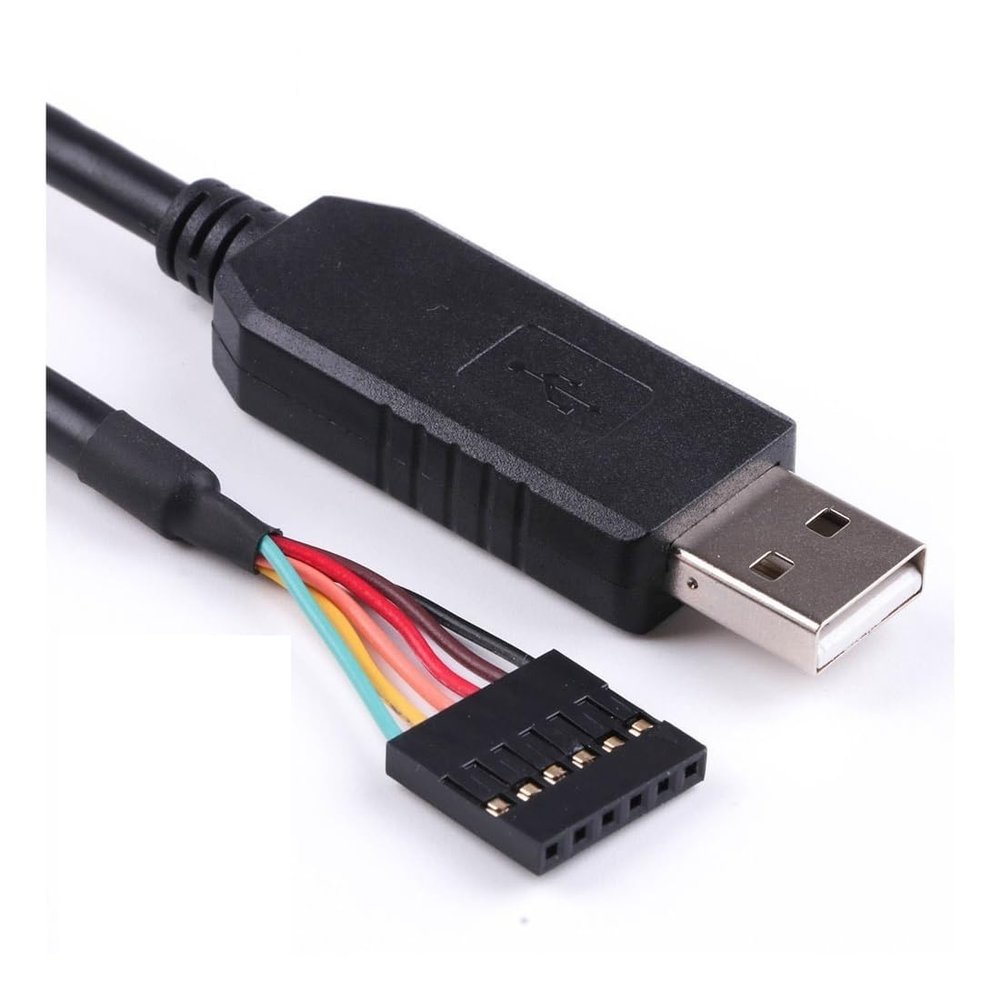

EVURU 6Pin FT232RL FT232 Module Compatible with A-r-d-u-i-n-o USB to T-T-L U-A-R-T Serial Wire Adapter RS232 Download Cable Module (Size : 6FT, Color : 5V VCC-3.3VTTL Level)

Description

• The cables are available with a 6-way SIL, 0.1" connector TTL levels is 3.3V, 5V TTL Level
• The TTL-232R cables are a family of USB to TTL serial UART converter cables incorporating FTD's FT232RL USB to Serial UART interface IC device which handles all the USB signalling and protocols.
• The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB Each TTL-232R cable contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB connector end of the cable. The other end of the cable comes with a selection of different connectors supporting various applications .
• Auto transmit buffer control Compatible With RS485 applications.
• Transmit and receive L drive signals.

Welcome to my small store, where you can find unique products and high-quality services, providing you with a better service experience
Based USB to TTL Serial Cable are designed using the the standard FT232RL chipset.
The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB.
The cables are available with a 6-way SIL, 0.1" connector TTL levels is 3.3V, 5V TTL Level
The TTL-232R cables are a family of USB to TTL serial UART converter cables incorporating FTD's FT232RL USB to Serial UART interface IC device which handles all the USB signalling and protocols.
The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB Each TTL-232R cable contains a small internal electronic circuit board, utilising the FT232R, which is encapsulated into the USB connector end of the cable. The other end of the cable comes with a selection of different connectors supporting various applications .
Cables are FCC, CE, RoHS compliant and are available at TTL levels 3.3V; 5V
Cables are available with either a 6-way SIL,0.1rdquo pitch connector, a 3.5mmAudio Jack, an 6 way, keyed 2mm pitch connector (intended Compatible With use with VMUSIC2 or VDRIVE2) or bare, tinned wire ended connections
The USB side of the cable is USB powered and USB 2.0 full speed compatible.
Each cable is 1.8m/6FT long and supports a data transfer rate up to 3 Mbaud (3.3V/5V TTL Level, but VCC both 5V)
Red wire: 5VBlack wire: GND
Yellow wire: RXD
Orange wire: TXD
Green wire: RTS
Brown wire: CTS
Package Included:
1PCS*FTDI FT232RL USB to Serial adapter module USB TO TTL Compatible With Cable 6Pin
Product Vedio:
About FT232RL
The FT232R is the latest device to be added to FTDI?s range of USB UART interface Integrated Circuit Devices. The FT232R is a USB to serial UART interface with optional clock generator output, and the new FTDIChip-ID? security dongle fea
