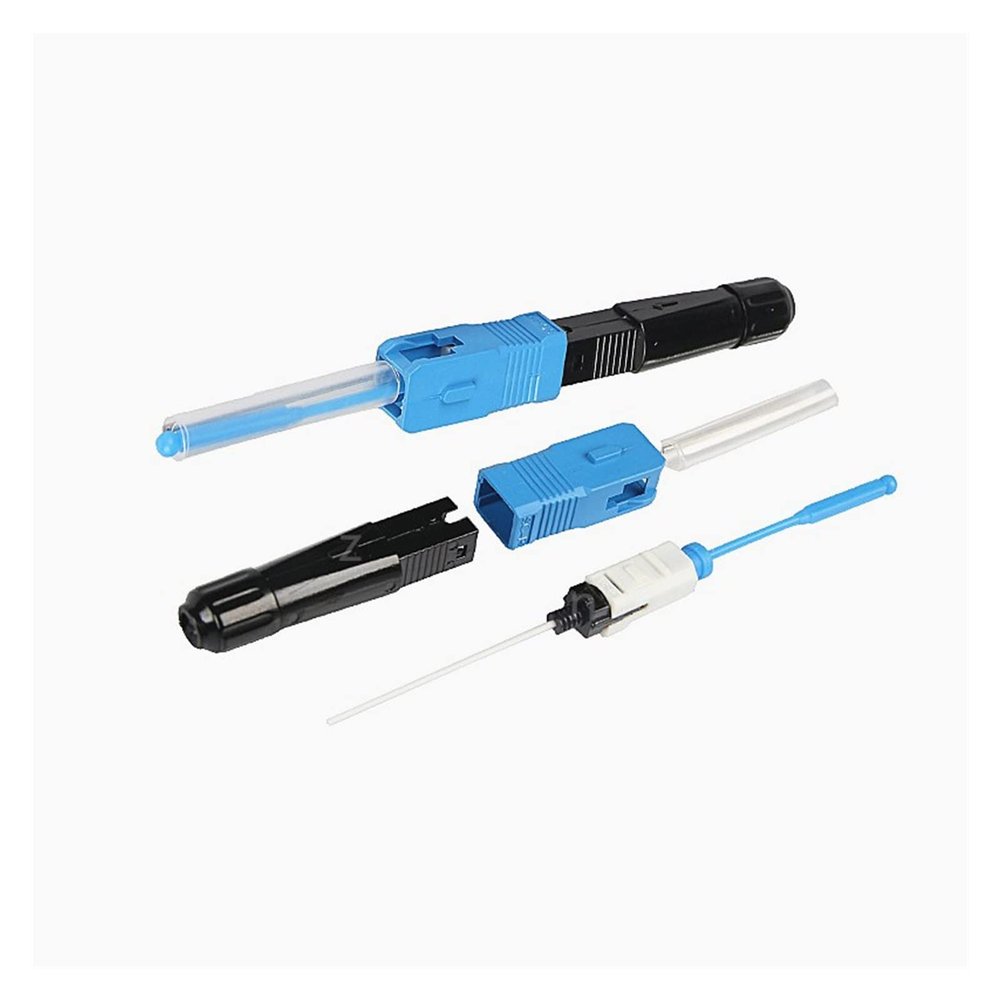

EZGISH Optical Fiber Fittings 100PCS SC UPC Hot Melt Optical Fiber Fast Connector FTTH Field Quick Assembly Fiber Optic connectors Communication Equipment

Description

• Low insertion loss
• Ease of installtion
• Low cost& reliability
• Easy of use
• Low environmental sentitivity

Field Assembly Optical Connector SC Hot Melt FTTH Fast Connector
The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule. Using this onsite assembly optical connector, it is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination. The Fast connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and FTTH
Feature
prestubbed factorypolished ferrule that couples to the fiber being terminated
Precision mechanical alignment insures low loss with a prosprietary gel.
Connector Type: SC
Fiber Application: Singlemode
Fiber Type:
Number of Fibers: 1
Maximum Cable Diameter (mm):2X3mm
Connector Ferrule: Ceramic
Specification
Item
Parameter
Single-Mode
Insertion Loss
Max0.5dB , Average0.3dB
Return Loss
APC50dB;UPC45dB
Durability (1000 Mating)
0.2dB Max.
Operating Temperature
-40C~+75C
Storage Temperature
-40C~+85C
Remark: Ferrule Concentricity SM<; 1um; MM<; 1.4um Ferrule inner diameter tolerance +1/-0um Ferrule outer diameter tolerance0.5 um.
Fetaures
Low insertion loss
Ease of installtion
Low cost& reliability
Easy of use
Low environmental sentitivity
High return loss low amounts of reflection at the interface
Embedded optical fiber in the Vgroove, with matching gel
