FS-60C Fusion Splicer High Precision Cutter Integrated,5.0in Alignment Fiber Fusion Splicer Automatic Fiber Optical Welding Splicing for Cable Splicing Projects (US Plug)

Description

• [Versatile Fiber Compatibility] Suitable for fiber diameters ranging from 80 to 150m for the cladding layer and 100 to 1000m for the coating layer, supporting various fiber types including , MM, DS, and NZDS.
• [Efficient The fiber fusion splicer features a 5.0 inch TFT color LCD screen for clear images and simple The fusion loss and cutting angle are easily viewable at a .
• [Portable and Easy to Use] Lightweight design allows for easy transportation, while simple and fast fusion speed with low fusion loss make the splicer efficient for various projects.
• [Wide Application] Ideal for telecom, broadcasting, railway, petrochemical, power, military, public security, as well as fiber optic projects, maintenance, scientific research, and teaching.
• [Advanced Features] The splicer offers fine fiber alignment, inner alignment, and cladding alignment, with features like 17 fusion modes, 9 heating modes, and storage for 5000 latest fusion results, making it a versatile and tool for fiber optic work.

Specification:
Item Type: Fiber Fusion Splicer
Material: ABS
Model: FS 60C
Applicable Fiber Type: (G.652 G.657), MM(G.651), DS(G.653), NZDS(G.655) and custom fiber types
Splicing Loss: 0.02dB (), 0.01dB (MM), 0.04dB (DS NZDS)
Return Loss: Better than 60dB
Typical Splicing Time: 9 seconds
Typical Heating Time: 26 seconds (adjustable heating time and temperature)
Fiber Alignment: Fine alignment, inner alignment, clad alignment
Fiber Diameter: Cladding diameter 80-150m, coating diameter 100-1000m
Cutting Length: Coating layer less than 250m: 8-16mm ; Coating layer 250-100um: 16mm
Tension Test: Standard 2N
Fiber Fixture: Multi functional fixture, suitable for bare fiber, pigtails, jumper wires, leather wires, replacement fixture can be used for SC and other connector for various FTTx fiber optic cables
Magnification: 300X (X or Y axes)
Heat Shrink Sleeve: 60mm, 40mm and a range of microsleeves
Display: 5.0 inch TFT color LCD screen, reversible display content for easy bidirectional operation
External Interface: USB interface for convenient data download and software updates
Splicing Modes: 17 sets of usage modes
Heating Modes: 9 sets of usage modes
Splicing Loss Storage: Internal memory stores 5000 latest splicing results
Battery Life: Capable of continuous splicing and heating for no less than 200 times
Power Supply: 1 x 7800mAh rechargeable lithium battery, charging time 3.5H (built in)
Plug Voltage: 100-240V
Power Saving Function: Save 15% lithium battery power in typical environment
Operating Environment: Temperature: -10~+50; Humidity: Lighting Function: Convenient for nighttime fiber placement

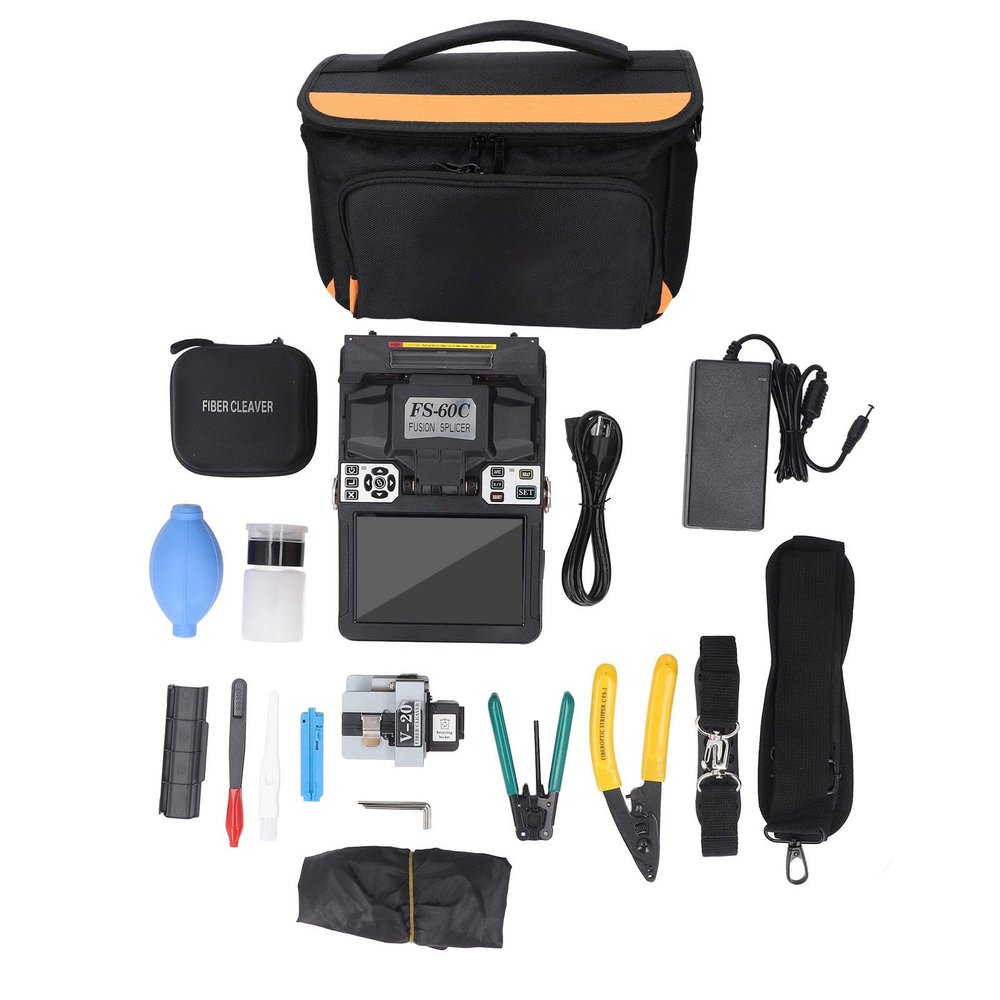

packing list:
1 x Fiber Fusion Splicer
1 x Fiber Cleaver
1 x Cable Stripping Pliers
1 x 3 Hole Pliers
1 x Plastic Length Fixer
1 x Charging Adapter
1 x Power Cord
1 x Empty Alcohol Bottle
1 x Air Blower
1 x
