High-Power Stereo Digital Power Amplifier Board 12V 24V 30W+30W Power Supply DIY Module

Description

• High-Power Stereo Digital Power Amplifier Board 12V 24V 30W+30W Power Supply DIY Module

1.
Descriptions:

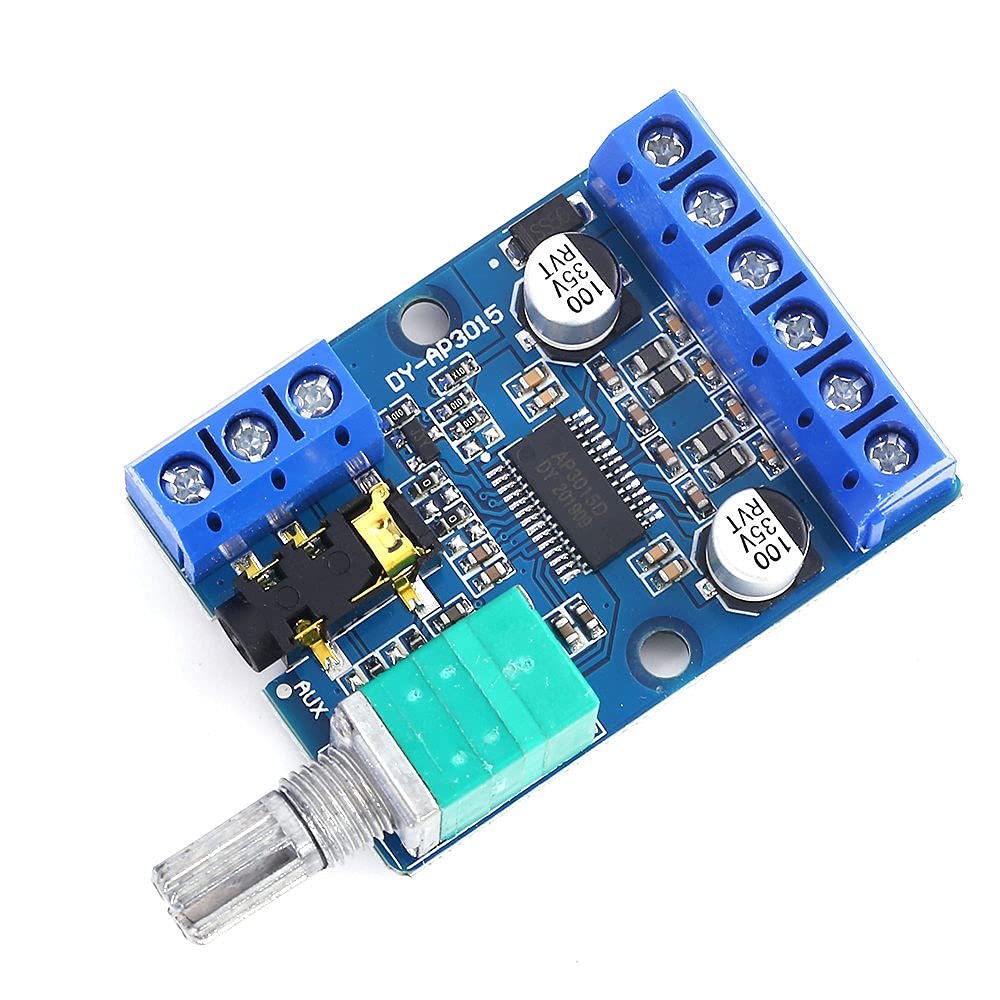

DY-AP3015 is a high-power stereo audio module.Dual channels audio signal output.Built-in amplifier module therefore it can connect to loudspeaker directly.It is ideal for DIY speakers and transponders.

2.
Features:

1>.Width work voltage range
2>.Applicable multiple type speakers
3>.Knob adjustment
4>.Support reverse connection protection
5>.Support short circuit protection
6>.Self-recovery overheat protection

3.Parameters:

1>.Product name:DY-AP3015 Stereo Power Amplifier Module
2>.Model:DY-AP3015
3>.Work Voltage:DC 8V-24V
4>.Work Mode:Class D(PWM)
5>.Channel:Dual channel
6>.Output Power:
6.1>.Output power 18W*2 at 12V 4ohm
6.2>.Output power 10W*2 at 12V 8ohm
6.3>.Output power 15W*2 at 16V 8ohm
6.4>.Output power 20W*2 at 20V 8ohm
6.5>.Output power 30W*2 at 24V 8ohm(Need add extra heat sink!)
7>.Match speaker(30W~150W):
7.1>.4ohm at 8V~12V
7.2>.8ohm at 8V~24V
8>.Work Temperature:-40~85
9>.Work Humidity:0%~95%RH
10>.Module Size:59*32*14mm

4.Use steps:

1>.Choose the right speaker and connect as shown in wiring diagram.
2>.Connect to right power supply from input terminal.
3>.Connect audio signal from 3.5mm socket or blue terminal.
4>.Test and use.

5.Application:

1>.Modified speaker
2>.Amplifier equipment
3>.Repair replacement

6.
Notes:

1>.The power amplifier board should be as far away as possible from the WIFI signal (router) avoid signal interference.
2>.Recommended power supply voltage DC 8~24V.Module will be damaged if input voltage is more than 26V.
3>.Input voltage can not more than 12V if connect 4ohm speaker.
4>.Input voltage can not more than 24V i
