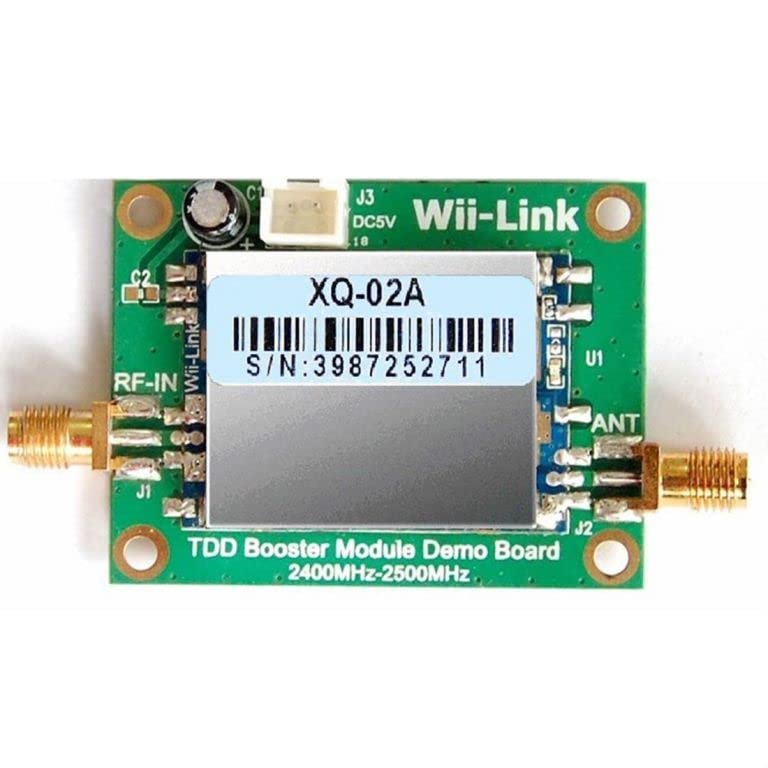

JMT 2-4G Power Amplifier 2W Routing Signal Amplifier for Signal Enhancement TDD Booster Module Board with 6DB Antenna (Module Only)

Description

• Built-in high-speed transceiver switching automatic discriminating circuit, can automatically switch the transceiver state, do not need the wifi control chip to give the control signal to work automatically, so it is compatible with any WiFi program.
• Can be applied to all kinds of special requirements for WiFi signal transmission distance and connection stability.
• Bi-directional signal amplification module is designed for various applications in 2.4GHz band, its small size and easy application make the design of RF part of 2.4GHz wireless products extremely simple.
• Receiving gain: 10dB; Transmit gain: 11dB; Receiving noise factor: 3.0dB.
• Input power range: 4dBm - 20dBm; Maximum transmit power (Peak Power): 33dBm (2W); Dimension: 36mm * 26mm * 4.8mm (L*W*H).

JMT 2-4G Power Amplifier 2W Routing Signal Amplifier for Signal Enhancement TDD Booster Module Board with 6DB Antenna

Description:
"XQ-02A" bi-directional signal amplification module is designed for various applications in 2-4GHz band, its small size and easy application make the design of RF part of 2-4GHz wireless products extremely simple, greatly shorten the product development cycle and reduce product development costs!
Built-in high-speed transceiver switching automatic discriminating circuit, can automatically switch the transceiver state, do not need the wifi control chip to give the control signal to work automatically, so it is compatible with any WiFi program.
Can be applied to all kinds of special requirements for WiFi signal transmission distance and connection stability, such as: advertising machines, wireless network players, high-power wireless routers, high-power wireless network cards, high-power outdoor AP, wireless cameras, etc..

Specification:
Receiving gain: 10dB.
Transmit gain: 11dB.
Receiving noise factor: 3.0dB.
Input power range: 4dBm - 20dBm.
Maximum transmit power (Peak Power): 33dBm (2W).
Dimension: 36mm * 26mm * 4.8mm (L*W*H).

Package:
DEMO board (with XQ-02A small module) * 1
6DB antenna * 1
