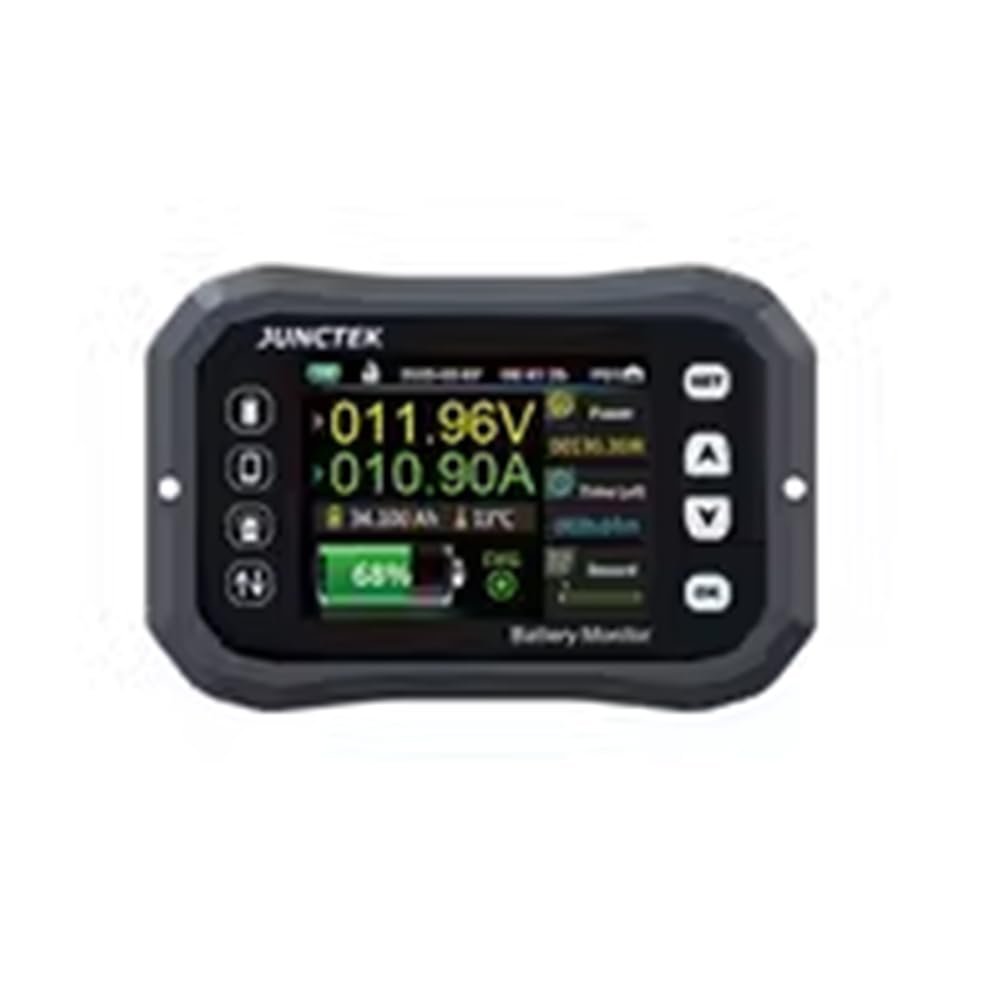

KH110F Electric RV Voltage and Current Meter 120V/100A Battery Monitor Battery Manager

Description

• Voltage measurement range 0-120V (external power supply)
• Voltage measurement range 10-120V (self powered)
• Current measurement range 0~100A
• Enter standby time of 0-99s
• The maximum accessible communication distance for Bluetooth communication is 10 meters

Model
KH110F
Sampling method splitter
Voltage measurement range 0-120V (external power supply)
Voltage measurement range 10-120V (self powered)
Voltage resolution of 0.01V
Current measurement range 0~100A
Current resolution of 0.01A
Relay No relay provided, requires self configuration
Temperature measurement range -20-120C
Capacity display range: 0%~100%
Power measurement range: 0~72KW
Power resolution 0.01W
An hour measurement range of 0~9999.99Ah
Capacity resolution of 0.001 Ah
Measurement range of watt hours: 0~9999.99kWh
Watt hour resolution of 0.001Wh
Time measurement range: 0~999:59:59S
Time resolution of 1 second
The maximum accessible communication distance for Bluetooth communication is 10 meters Voltage accuracy+1%+2 words
Current accuracy+1%+5 words
Sampling rate once per second
The power consumption of the measurement board is approximately 0.4W
The power consumption of the display header is approximately 0.5W
Overpower protection 0-99999.99W
Discharge overcurrent protection 100A/400A/600A
Charging overcurrent protection 100A/400A/600A
Overvoltage protection 0-120V
Undervoltage protection 0-120V
External over temperature protection 0-99s
Protection recovery time 0-60s
Enter standby time of 0-99s
Delay time setting P01-P99 for a total of 99
