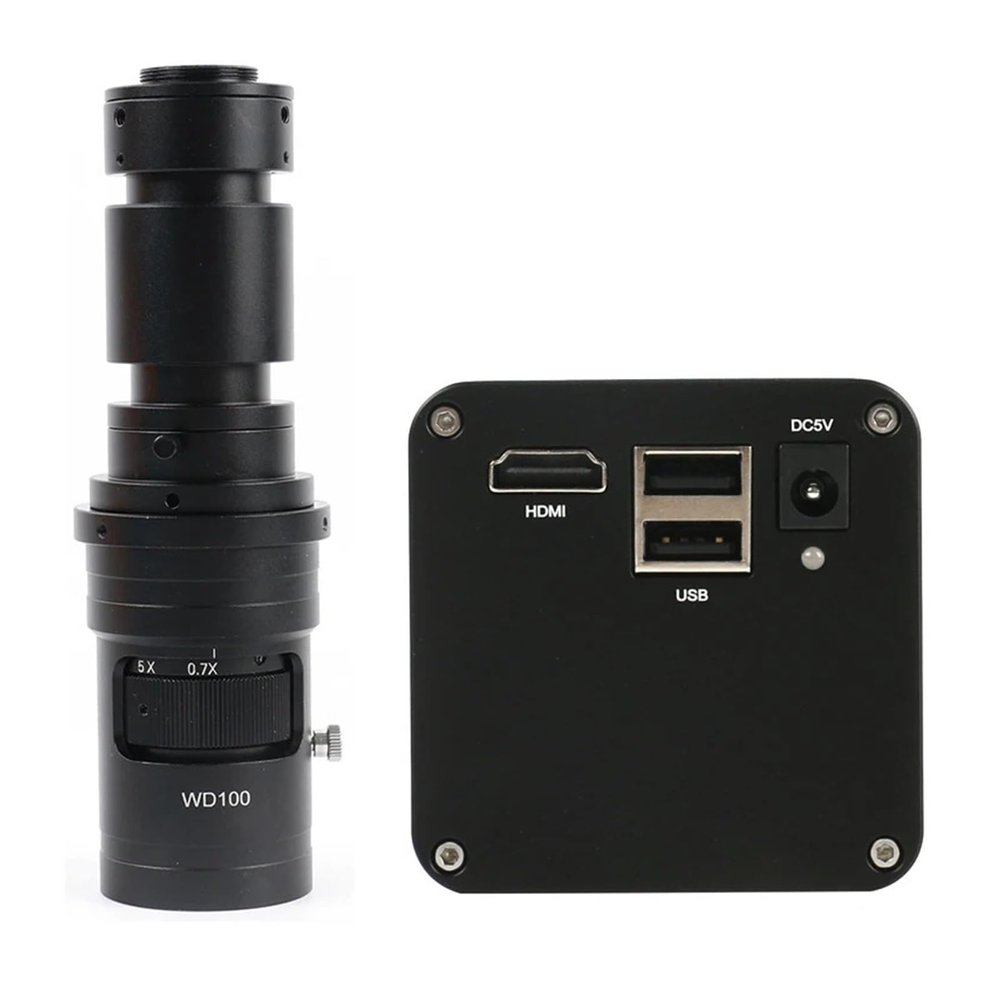

LIUZHENZHEN IMX385 1080P HDMI Industrial Measurement Video Microscope Camera C Mount U Disk Video Recorder for PCB Phone Soldering(with 200x Lens,Not Measurement)

Description

• IMX385 sensor for clear and detailed images
• 1080P HDMI output for real-time viewing on a monitor or TV
• Industrial measurement capabilities for precise measurements
• C mount design for easy installation on microscopes
• U Disk video recording function for convenient data storage

Feature:
High Quality, High Resolution, Clear Images
1080P FULL HD 60FPS high speed camera
SENSOR IMX385 Colour CMOS
UI design menu, easy to control by mouse
TF Card Video Recorder
Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
Specification:
Image Sensor : SENSOR IMX385 Colour CMOS
Pixel size : IMX385 1/2"
Menu : Fully digital UI design
Method of Operation : Mouse
Lens interface : C/CS-type
Power DC : DC5V
Output method : HDMI
White Balance : Auto / Manual / One-push control
Exposure : Auto / Manual
Display Frame rate : 1080P@60fps
Scanning method : Line by line scanning
Shutter Speed : 1/50s(1/60s)-1/10000s
Operating Temperature : 0-50
Magnification / Zoom : Electronic Zoom 1-50X
Saving function : U Disk storage
Menu language : Chinese/English/Japanese
180X C-MOUNT Lens
Working distance: 95mm
Zoom c-mount Lens
0.5X C-mount adapter
Zoom ratios: 6.5:1
Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)
Size: 180mm(L) * 50mm(DIA)
Working distance:145-100mm
100X C-MOUNT Lens
Magnification Power by 0.12 - 2X (about 8X - 100X on the display)
Work distance: 100mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g
Working distance:30-280mm
Feature
200X Working distance:100mm -175mm
500X Working distance:90mm -110mm
Connector:CS C mount
Zoom:continouasly variable zoom
Objective Magnification:0.7X - 5X(about 28 - 200X on the display)/(about 70 - 500X on the display)
Eyepiece lens adapter:0.4X/1X
Fixed position:50mm
Locking:0.7X - 5X Locking
Thread:42mm
Auxiliary Objective Lens:0.35X, 0.5X, 2X,1X (optional)
Size:132mm(L) * 55mm(DIA) / 175mm(L) * 55mm(DIA)
56 LED Adjustable Compact Microscope Ring Light
Provides intense and focused shadow-free illumination
