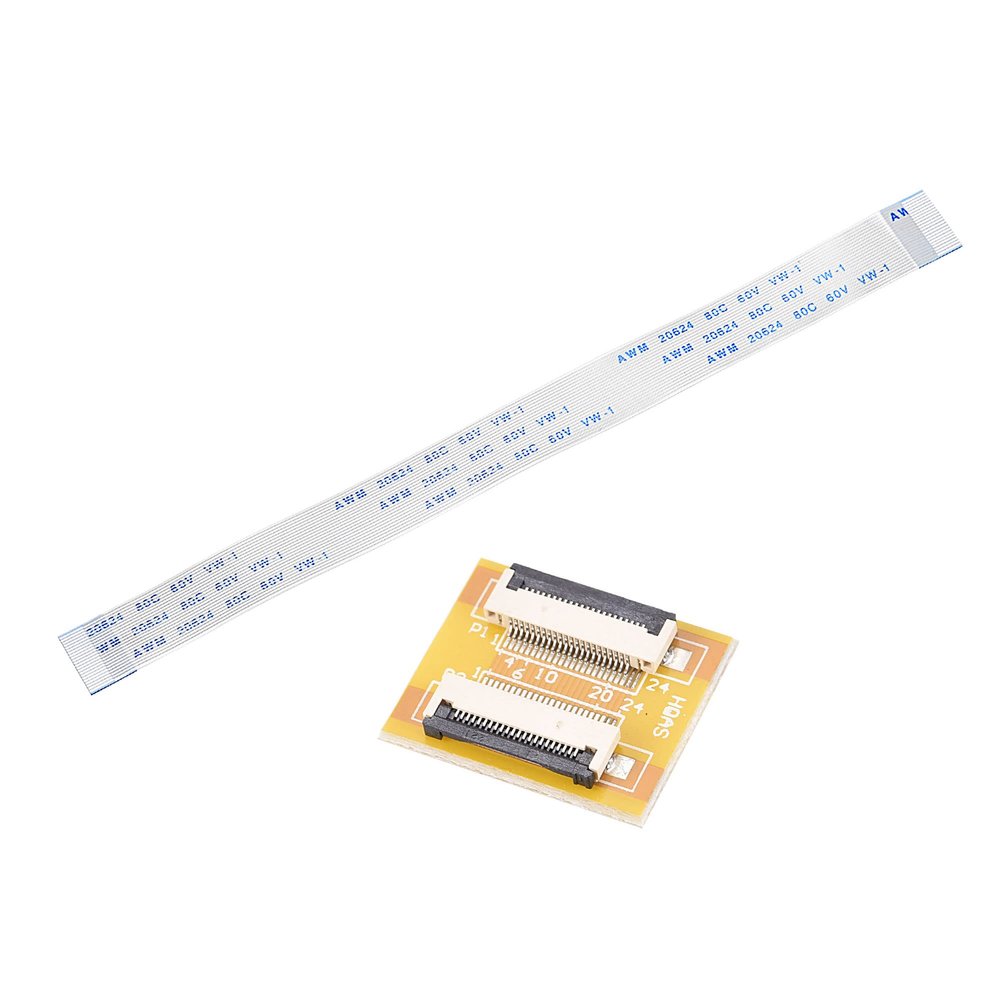

MECCANIXITY FFC FPC 22 Pin 0.5mm Pitch PCB Extension Connector Board with 5 Pack 0.5mm Pitch 150mm Flexible Flat Cable Kit

Description

• FPC/FFC cables kit often found in high density electronic applications like those small electrical equipment. Widely used for laptops, DVD player, LCD monitors, audio system and other DIY projects, etc.
• Board Type: flip-up interface, 22 Pins, 0.5mm pitch, 24mm x 20mm x 3.5mm/0.94" x 0.8" x 0.14"(LxWxH) Dimension; Cable: Pin on the Same Side, 22 Pins, 0.5mm Pitch, 150mm / 5.91" Long, 150mm x 11.5mm / 5.91" x 0.45"(LxW).
• Extension board for connection. The ultra thin flat flexible ribbon cable can saving much space for your connecting. The reinforce stiffener on the two end of the cables make it stable and strong.
• Steps of installations: 1. Connecting your cable to the board first ; 2. Fix the FPC board to your equipment; 3.Testing the function to finish.
• All size above is measured by manual, please allow +/-0.1 inch error.

What is this?
FPC/FFC cables kit often found in high density electronic applications like those small electrical equipment. Widely used for laptops, DVD player, LCD monitors, audio system and other DIY projects, etc.

What will I get?
The Flexible Flat Cable kit we provide here, is in the size of:
Cable: Pin on the Same Side, 22 Pins, 0.5mm Pitch, 150mm / 5.91" Long, 150mm x 11.5mm / 5.91" x 0.45"(L*W) Dimension

Board Type: flip-up interface, 22 Pins, 0.5mm pitch, 24mm x 20mm x 3.5mm/0.94" x 0.8" x 0.14"(LxWxH) Dimension

In the package of: 1 Set - 1 pack FPC Board with 5 pack 150mm FFC Cable

Is there any advantages of the product?
Extension board for connection. The ultra thin flat flexible ribbon cable can saving much space for your connecting. The reinforce stiffener on the two end of the cables make it stable and strong.

How to use it?
Steps of installations: 1. Connecting your cable to the board first ; 2. Fix the FPC board to your equipment; 3.Testing the function to finish.

What should I notice?
All size above is measured by manual, please allow +/-0.1 inch error.
