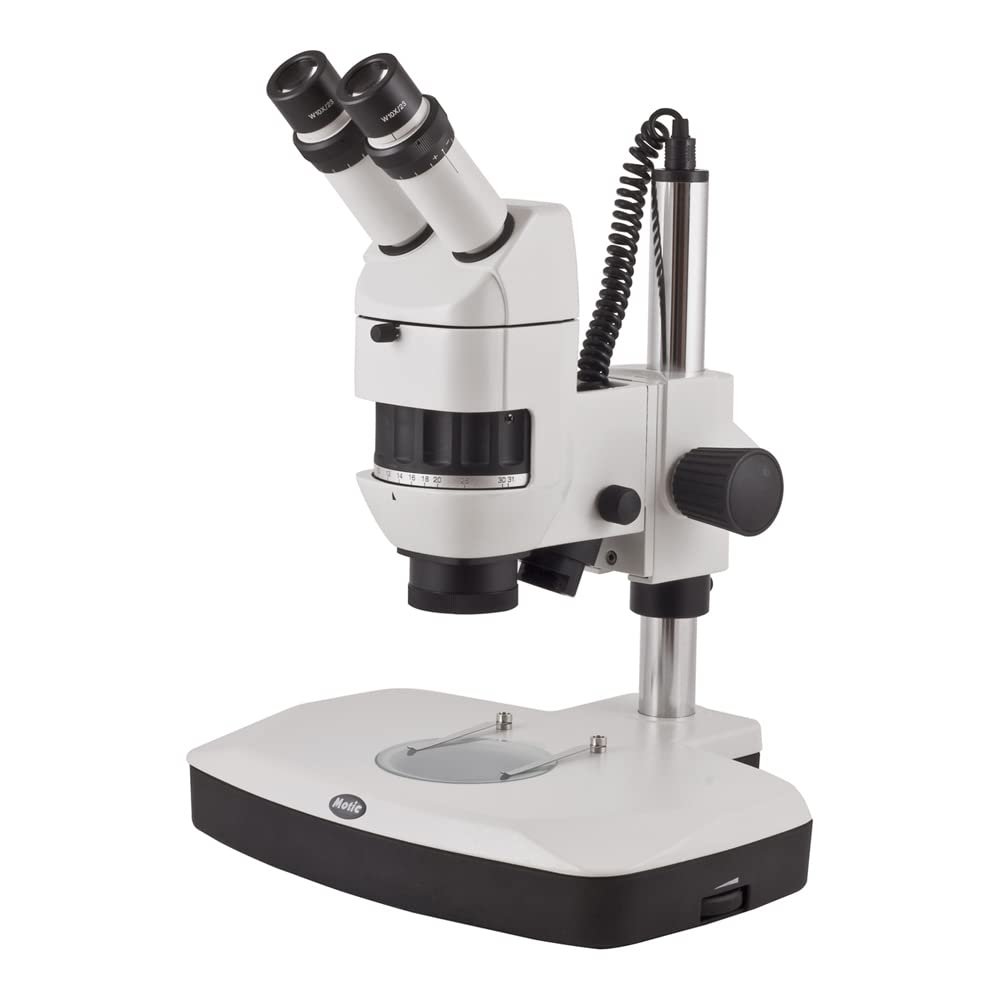

Motic 1100200900352 Series K-700 Stereo Microscope Head and Focusing Mount without Incident Light

Description

• Microscope head and focusing mount without incident light for use with Motic series K-700 stereo microscopes (sold separately)
• Binocular with 45-degree vertical inclination for viewing comfort
• 10x/23mm widefield eyepiece and 1x achromatic lens objective for color correction of magnified images, with 0.6 to 31x objective magnification range
• Optical zoom ratio of 5.2:1 for providing precise viewing points within range
• 38.3mm diameter standard maximum field, and 32mm pole-mountable focusing block

This Motic 1100200900352 microscope head and focusing mount, without an incident light, is intended for use with a Motic series K-700 stereo microscope (sold separately), which employs a common main objective (CMO) system for ease of adding accessories without sacrificing optical quality. The binocular head has a 45-degree vertical inclination for viewing comfort, with 54 to 76mm interpupillary adjustment for individual eye spacing. The paired 10x/23mm widefield eyepieces with a 1x achromatic lens objective provide color correction of magnified images, and feature a 0.6 to 31x objective magnification range with an optical zoom ratio of 5.2:1 for precise viewing points within the range. The head has 38.3mm diameter standard maximum field, and a 32mm pole-mountable focusing block. This microscope head and focusing mount, without an incident light, is intended for use with Motic series K-700 stereo microscopes (sold separately), and is suitable for life science and material science applications. SpecificationsViewing configurationBinocular, 45 degree inclineEyepiece10x/23mm widefieldLens objectiveStandard 1x achromaticObjective magnification range0.6 to 31xZoom ratio5.2:1Maximum field diameter38.3mm

Microscopes are instruments used to enhance the resolution of an object or image. Types include compound, stereo, or digital. Compound microscopes use a compound optical system with an objective lens and an eyepiece. Stereo microscopes show object depth in a three-dimensional image. Digital microscopes are used to display an image on a monitor, rather than looking through a lens. Microscopes can have monocular (one), binocular (two), or trinocular (three) eyepieces, with varying magnification abilities. Magnification ability refers to the size of an image. Resolution, also known as resolvant power, refers to the clarity of the image. The interaction between field of view (FOV), numerical aperture (NA), and working distance (WD) determines resolution. Microscopes can control magnification through a fixed focus, or through a range of adjustments. They can also utilize LED, fluorescent, and mirror light sources to help control viewing capabilities. Microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science, and veterinary industries.
Motic manufactures microscopes, microscope cameras, digital imaging products, and application software. The company, founded in 1988 and headquartered in Xiamen, China, is a subsidiary of Hong Kong-based Speed Fair Co. Ltd. and meets International Organization for Standardization (ISO) standards 9001 and 14000.
