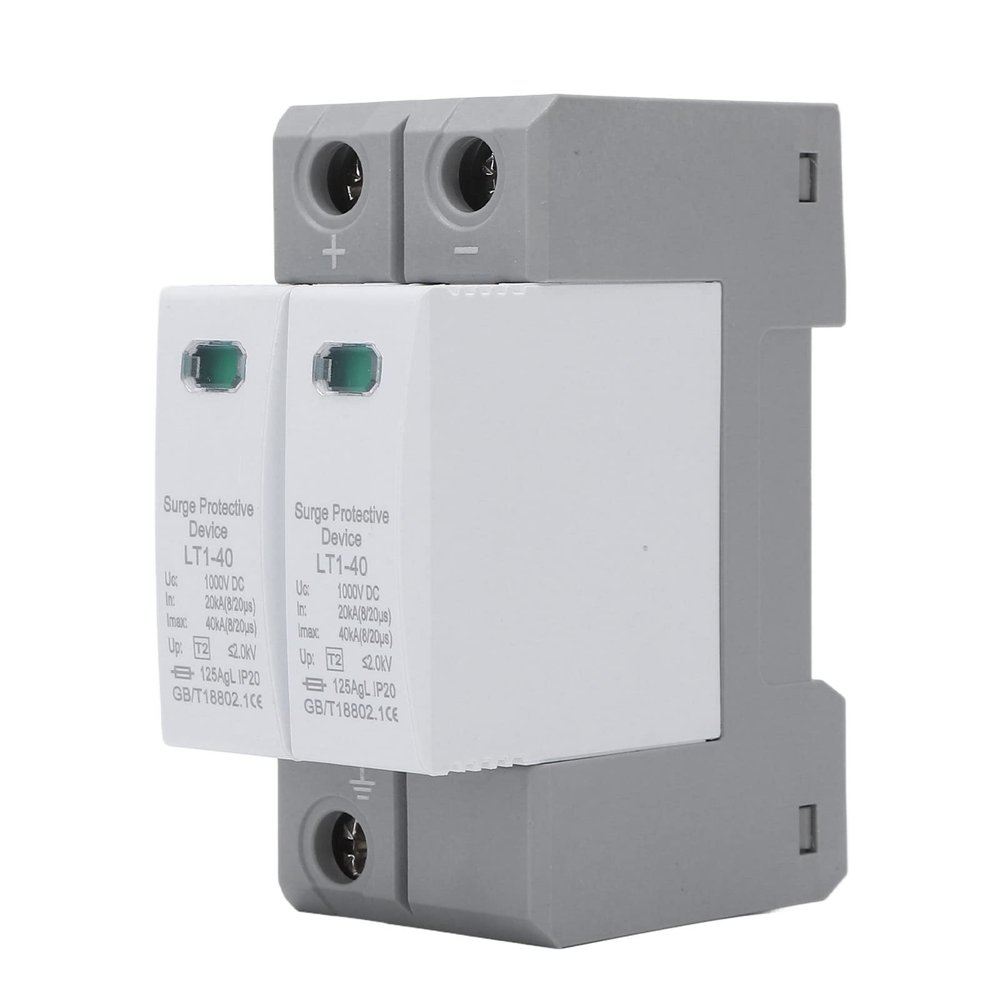

Protector, 2P DC Protector Quick Response Arrester Device PV House Protector, Protector, Power Converters

Description

• Maximum Continuous Working Voltage Uc: 1000V DC; Voltage Level Up: Less than or Equal to 2.0kV; Nominal Discharge Current In: 20kA (8/20s); Maximum Discharge Current Imax: 40kA (8/20s)
• Working Temperature: -40 to 80, Humidity: Less than or Equal to 90% (Average 25)
• Installation: Comes with a compact size and a light weight as well, the easy installation can be quickly completed.
• No fear of bad weather, the protector provides , prevent damage to electrical appliances in the home, and cut off the power supply when leakage occurs.
• Performance: protective device comes with stable structure, excellent performance and long service life.

Specification:
Item Type: PV DC Protector
Material: PC Flame Retardant
Maximum Continuous Working Voltage Uc: 1000V DC
Nominal Discharge Current In: 20kA (8/20?s)
Maximum Discharge Current Imax: 40kA (8/20?s)
Voltage Level Up: Less than or Equal to 2.0kV
Number of Poles: 2P
Class: IP20
Working Temperature: -40? to 80?
Humidity: Less than or Equal to 90% (Average 25?)

PackageList:
1 xDC Protector

Notice:
1. The power must be cut off before installation, and live is strictly prohibited.
2. Please connect as shown in the installation diagram during installation, where + is the positive wire and ? is the negative wire. Do not make wrong connections. After the installation is complete, close the automatic circuit breaker () switch to check whether the working state is normal.
