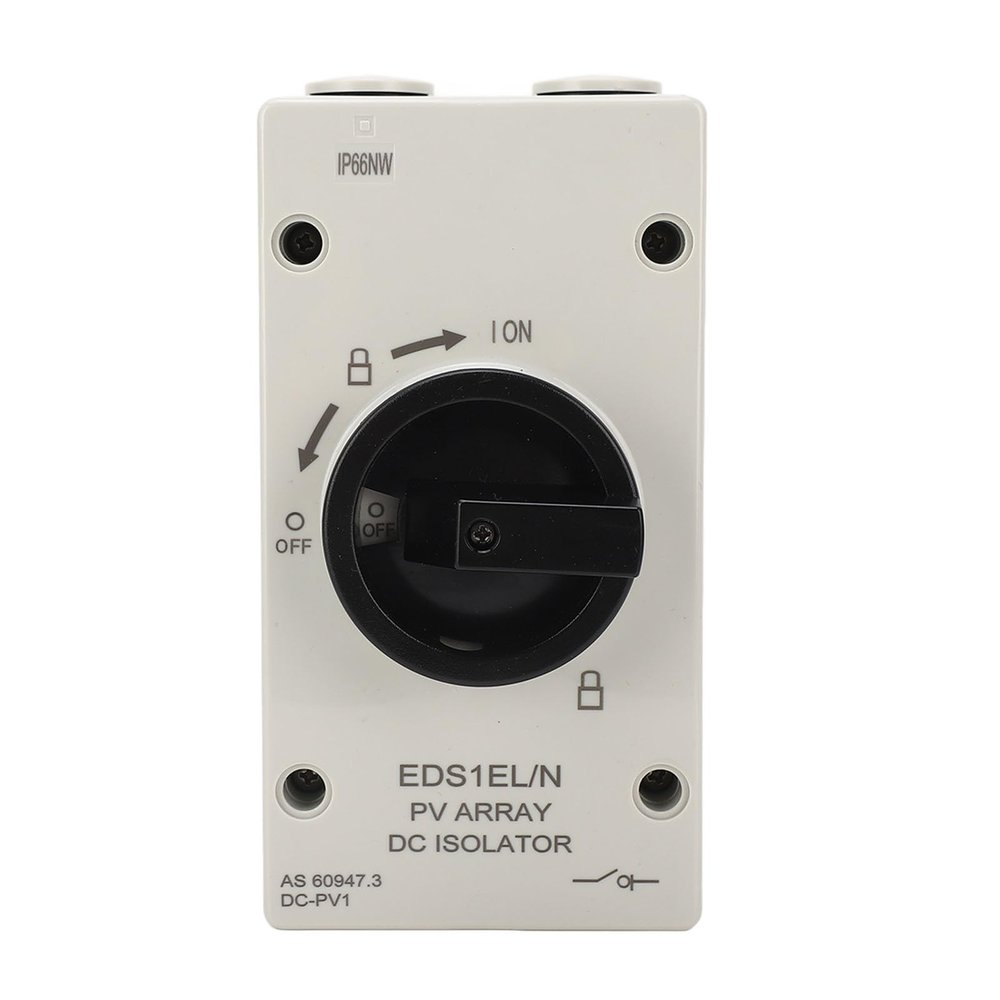

PV Solar Isolator, IP66 Good Heat Dissipation PV DC Isolator Switch 1000V Fast Switching for Power Generation System

Description

• QUICK RESPONSE: The switch knob has three lockable positions to prevent malfunction. The switching mechanism adopts energy storage spring, can quickly achieve switching. The maximum on/off time is less than 5ms.
• DUAL ARC EXTINGUTION: Adopting the dual arc extinguishing method of magnetic arc extinguishing and arc extinguishing grid arc extinguishing, this DC PV disconnect switch could suppress the arc effectively.
• HIGH SAFETY: With an IP66 waterproof box design, using UL94V 0 PC fireproof material, this isolator switch is very safe to use, with enough internal space and good heat dissipation effect.
• MULTIPLE USES: Widely used for RC solar power, boats, solar on the grid, off-grid living supplies, home solar systems, commercial solar systems.
• FLEXIBLE INSTALLATION: Wall mounted design, no need for housing installation, this photovoltaic insulator is flexible to install and adapt to different specifications of waterproof splice or wire connectors.

1. HIGH SECURITY: With IP66 waterproof case design, using UL94V 0 PC fireproof material, this insulator switch is very safe to use, with enough internal space and good heat dissipation effect.
2. QUICK ANSWER: The switch knob has three lockable positions to prevent malfunction. The switching mechanism adopts energy storage spring, can quickly achieve switching. The maximum on and off time is less than 5 ms.
3. DOUBLE ARC EXTINCTION: Adopting the dual arc extinguishing method of magnetic arc extinguishing and arc extinguishing grating arc extinguishing, this PV DC disconnect switch could suppress the arc effectively.
4. FLEXIBLE INSTALLATION: Wall mounted design, no need for housing installation, this photovoltaic insulator is flexible to install and adapt to different specifications of waterproof cable connectors or splices.
5. MULTIPLE USES: Widely used for RC solar power, boats, solar on grid, supplies for off-grid living, home solar systems, commercial solar systems.

Specifications:
Item Type: Photovoltaic DC Isolator Switch
Material: PC
Waterproof Grade: IP66NW
Flame Retardant Grade: UL94V-0
Standard: IEC/EN 60947-1 IEC/EN 60947-3
Rated voltage: 1000 V
Rated current: 32 A (40 C), 29 A (60 C)
Uimp (rated voltage supported impulse): 8 KV
Ui (rated insulation voltage): 1500V
Ambient temperature: -40C to +85C

Packing List:
1 x Photovoltaic DC Isolator Switch
4 x Screw Caps
