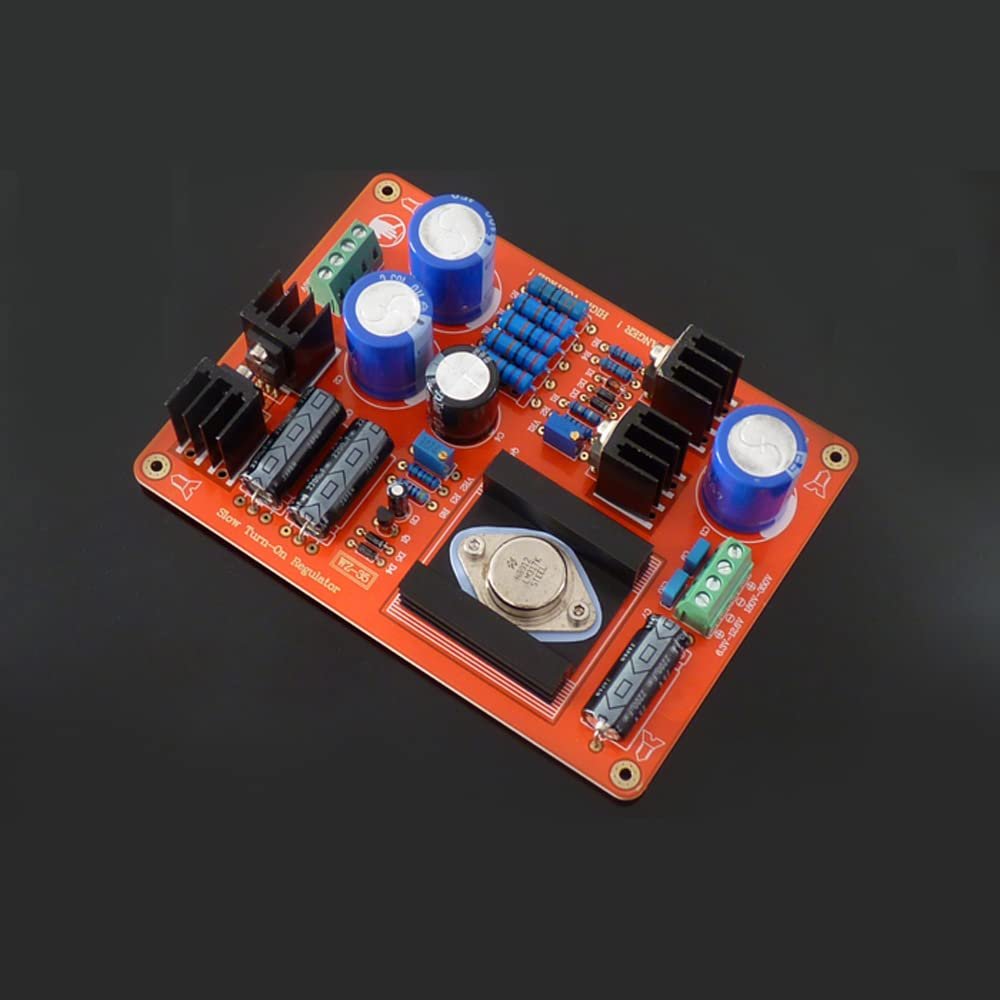

Q-BAIHE High Voltage/Filament Adjustable Power Supply Board for WZ-35 Bile Front Stage

Description

• Before the finished product is sent out, the extremely high voltage of the screen is adjusted to about 280V output
• and the low voltage of the filament is adjusted to about 6.3V output, which is suitable for 6N11 grade bladder front stage
• The extremely high voltage of the output screen of this board can be adjusted within the range of about +150-350V. If it needs a lower value (such as 50V-150V), please change the component value according to the instructions.
• The low voltage of the filament can adjust the value within the range of about +1.5-12.6V. If you need more, please consult us.
• With front transformer (AC260V+AC12.6V in, DC325V+DC12.6V out)

Specification:
1. Approximate size of the finished product: length 153mm, width 113mm, height about 35mm.
2. Before the finished product is sent out, the extremely high voltage of the screen is adjusted to about 280V output, and the low voltage of the filament is adjusted to about 6.3V output, which is suitable for 6N11 grade bladder front stage.
3. The extremely high voltage of the output screen of this board can be adjusted within the range of about +150-350V. If it needs a lower value (such as 50V-150V), please change the component value according to the instructions. The low voltage of the filament can adjust the value within the range of about +1.5-12.6V. If you need more, please consult us.
4. With front transformer (AC260V+AC12.6V in, DC325V+DC12.6V out)

Special note, this AC input place needs to add a transformer, not directly to the mains! ! ! !

Packing: 1*power board
