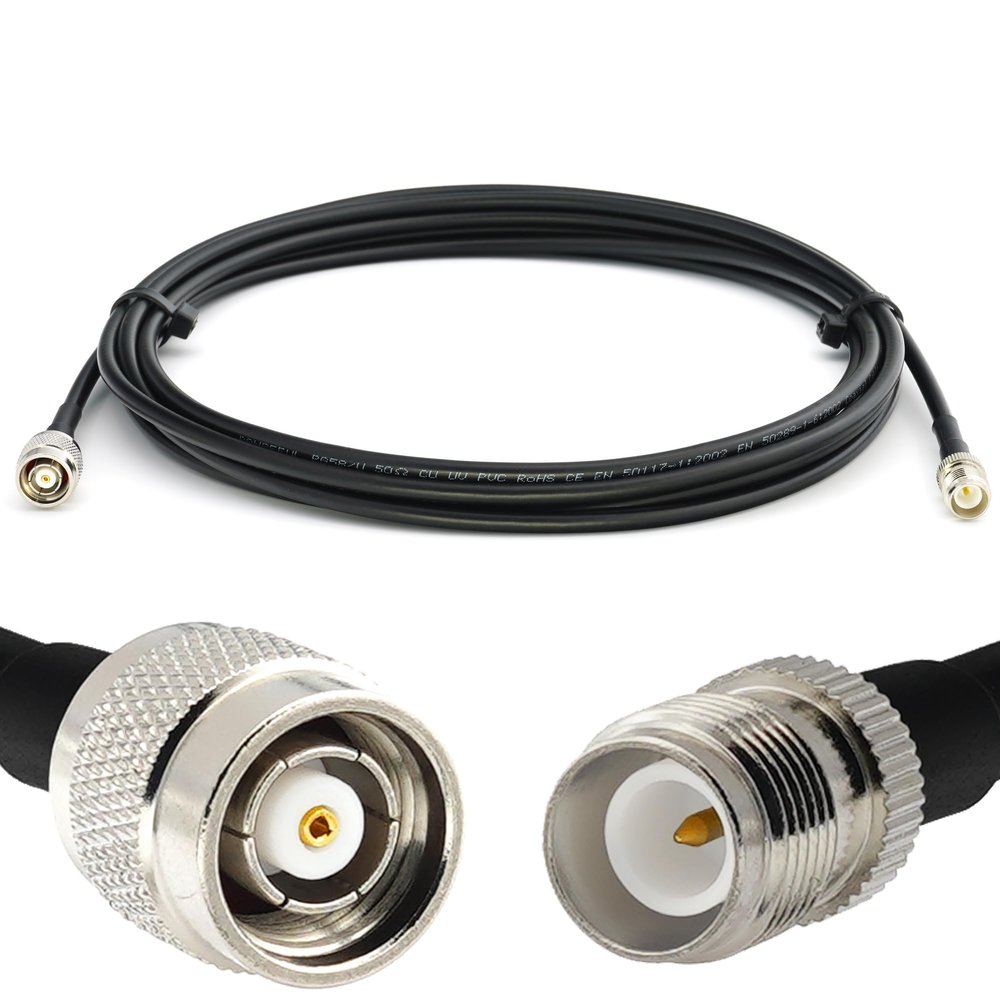

RANGEFUL RP-TNC Male to RP-TNC Female Extension Cable 10m / 32.8ft Jumper Low Loss RG58 Coax RF Coaxial (RP TNC Reverse Polarity TNC)

Description

• Indoor/Outdoor use Flexible extension cable with UV-resistant, Waterproof and Frostproof black PVC jacket.
• Solid Copper Conductor The 1.02mm copper conductor and tinned copper braid shield of RG58/U cable provide best-in-class data transmission with minimal attenuation.
• Double-wall shrink tubing Additional adhesive layer for better protection of connectors from external environment.
• Assembled in EU The connectors are soldered with silver-added solder for best contact and long life. Each cable is tested before shipment.

RP-TNC Male to RP-TNC Female Low Loss Semi-Flexible RG58/U Coaxial Cable
Double Shielded with Black PVC Jacket
Length: 10 meters (32.8 ft) PLEASE NOTE BEFORE ORDER: The RP-TNC is a special type of TNC connector. Externally, the two connectors are identical, but internally, the RP-TNC Male has a female contact and the RP-TNC Female has a male plug-shaped central contact.

Features
Indoor/Outdoor use. Flexible UV-protected black PVC jacket.
Solid Copper Conductor and Tinned Copper Braided Shield for best-in-class data transmission with minimal attenuation.
Double-wall shrink tubing with adhesive layer for better protection of connectors from moisture.
Assembled in EU, fully tested and packed.
Specifications
Cable Type: RG58/U
Center Conductor Type: Solid Copper (1 Strand)
Impedance: 50 Ohm
Frequency Range: DC-6GHz
Cutoff Frequency: 41 Ghz
V.S.W.R: 2
Operating voltage: 1900Vrms
Input Power (Peak): 2.5 KW
Velocity of propagation: 80%
Shielding Effectiveness: >90dB
Capacitance: 83.33 pF/m
Dielectric Type: PE
Jacket Material: UV PVC
No. of Shields: 2 (Aluminium foil + Tinned Copper Braid)
Operating Temperature: -40 to +80 deg C
Mechanical Specifications
Diameter: 4.95mm
Inner Conductor: 1.02mm
Dielectric: 2.90mm
Second Shield: 3.53mm
Bending Radius: 50mm
Attenuation dB/100m:
150Mhz: 14.1
220Mhz: 17.1
450Mhz: 24.6
900Mhz: 35.1
1500Mhz: 43.9
1800Mhz: 52.5
2000Mhz: 55.5
2500Mhz: 62.3
5800Mhz: 92.5
