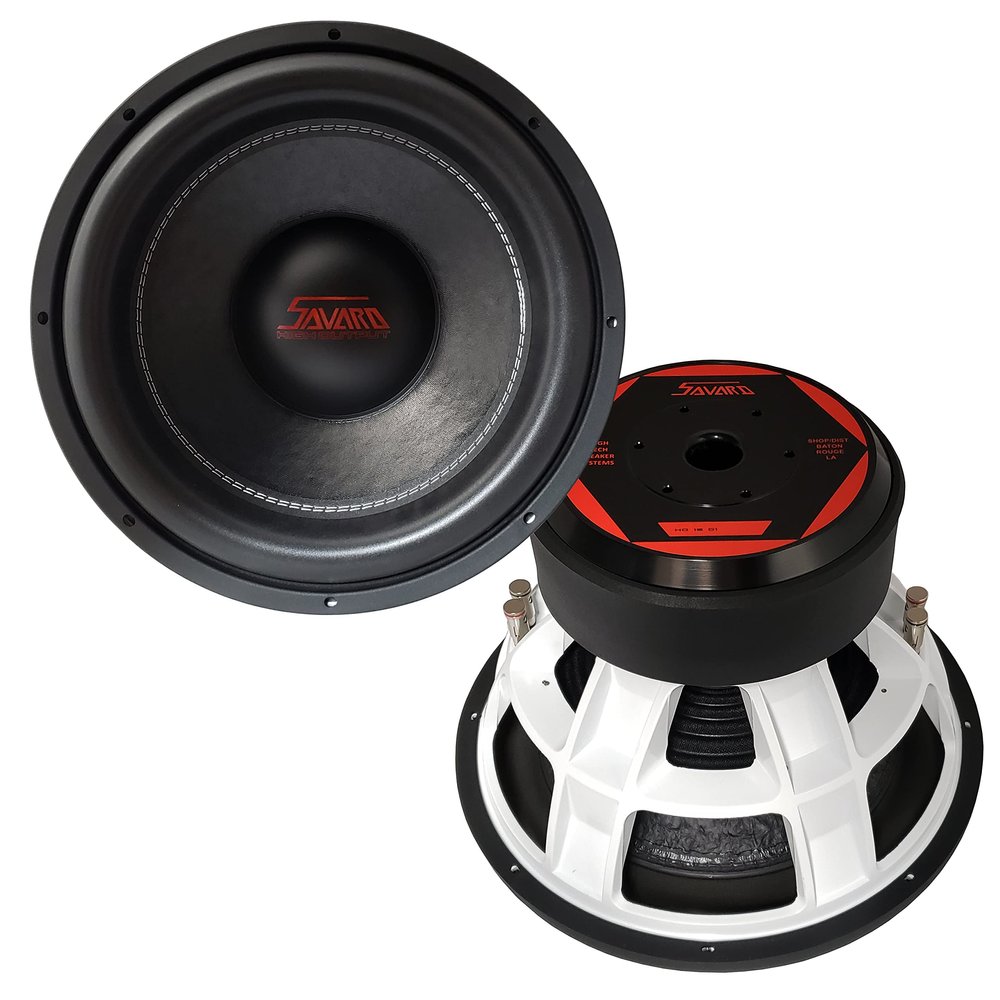

SAVARD Speakers High Output Series 15" Subwoofer (Dual 1 Ohm Push Terminal)

Description

SAVARD Speaker Systems High Output Series 15 Subwoofer

SAVARD High Output Series General Features:
Long Strand Kevlar Reinforced Cone
Tall Roll Nomex Surround with Double Stiching
Layered Linear Conex Spider with Reinforced Layered Tinsel Leads
Over/Under Removable Gasket for Multiple Mounting Configurations
Cast Aluminum Basket w/360 Venting
Pole Vent for Increased Cooling
3in Quad Layer Copper Voice Coil
4in Thick Y35 Ferrite Motor Assembly
4 AWG Spring Terminals

High Output 15 Specifications:
Nomial Diameter: 15inch
Power Handling: 2000w/RMS
Rec. Power Range: 2000-3500w/RMS
Dual 1-Ohm Impedance
Frequency Response: 18Hz - 120Hz
Sensitivity: 87.28 db 1w/1m

Thiele and Small Parameters:
Resonant Frequency (Fs): 29 Hz
DC Resistance (Re): 2 Ohm (series wiring)
Voice Coil Inductance (Le): 6 mH at 1kHz
Mechanical Q (Qms): 3.1
Electromagnetic Q (Qes): 0.415
Total Q (Qts): 0.366
Compliance Equivalent Volume (Vas): 1.8 cuft
Mechanical Compliance of Suspension (Cms): 0.06mm/N
BL: 20.5 Tm
Diaphram Mass w/ Airload (Mms): 467 grams
Displacement: 0.2cuft
37mm Xmax in One Direction 74mm Overall
SD: 120.85 in sq

Dual 2-Ohm Impedance
Frequency Response: 18Hz - 120Hz
Sensitivity: 86.6 db 1w/1m

Thiele and Small Parameters:
Resonant Frequency (Fs): 28 Hz
DC Resistance (Re): 4 Ohm (series wiring)
Voice Coil Inductance (Le): 6 mH at 1kHz
Mechanical Q (Qms): 3.166
Electromagnetic Q (Qes): 0.464
Total Q (Qts): 0.405
Compliance Equivalent Volume (Vas): 2.0 cuft
Mechanical Compliance of Suspension (Cms): 0.07mm/N
BL: 26.9 Tm
Diaphram Mass w/ Airload (Mms): 468 grams
Displacement: 0.2cuft
37mm Xmax in One Direction 74mm Overall
SD: 120.85 in sq

Mounting Informatio
