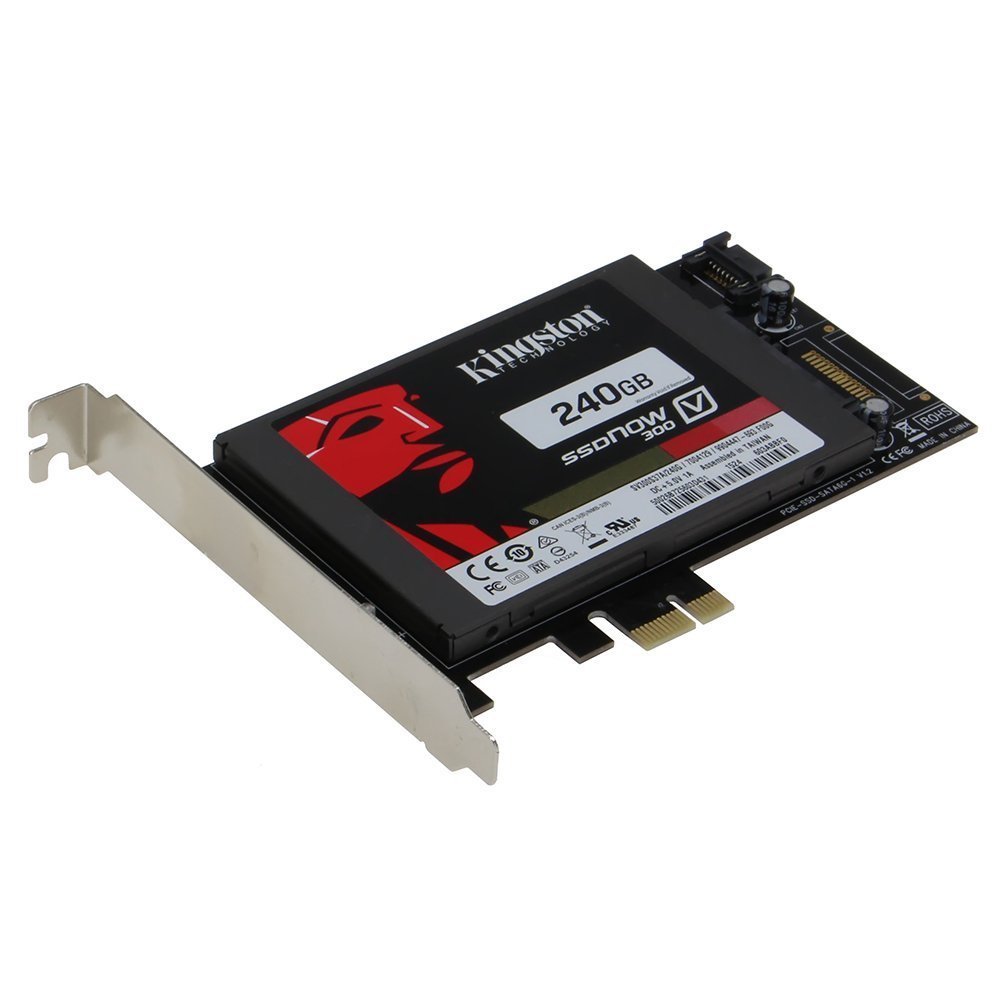

SEDNA PCI Express (PCIe) SATA III (6G) SSD Adapter with 1 SATA III Port (with Built in Power Circuit, no Need SATA Power Connector, Best for Mac), SSD not Included

Description

• Direct mounting of 2.5" SATA III SSd / Hdd on board
• One extra SATA III port for other devices
• Built in Power circuit, best for MAC where no power connector available
• Operating System Software can be installed on mounted SSD and booting of the OS from the installed PCIE disk is supported ( Your mother board BIOS need to support this feature )
• Maximum capacity supported : 2T

Features :

Direct mounting of 2.5" SATA III SSd / Hdd on board (SSD not included)
One extra SATA III port for other devices
Operating System Software can be installed on mounted SSD and booting of the OS from the installed PCIE disk is supported (Your mother board BIOS need to support this feature)
Using standard low cost high perfermance 2.5" SSD instead of the much more expansive mSATA SSD
Built in Power circuit, no power connection required. Best for MAC where no extra power connection available
Can be used for installion of VMWare ESXI 5.5 as boot disk (need to inject sata-xahci-1.10-1.x86_64.vib to ESXI installation ISO file)

Specifications :

PCIE 2 Port SATA III (6G) Port
1 Port support direct installation of standard 2.5" SATA III SSD
1 extra internal SATA III port for intallation of extra Hdd / SSD
PCI Express Specification Rev. 2.0
1-Lane (x1) PCI-Express with transfer rate 5Gb/s Full Duplex channel
Compliant with Serial ATA 3.0 Specification,Data transfer rate up to 6.0Gb/s
Backward compatible with SATA1.0/SATA2.0 specification
Maximum capacity supported : 2T
Support NCQ
Driver supported Windows98SE /ME/ 2000/XP/Server 2003/Vista/WIN7/Win8/Win 8.1/ Win 10, Mac OS

System Requirement :
Available PCIE 2.0 1X,2X,4X,8X or 16X slot on PC
Supported OS

Package Content :
PCIE SATA III SSD adapter
Driver CD
4 x Hdd mounting screw
(SSD in photo is not included)
