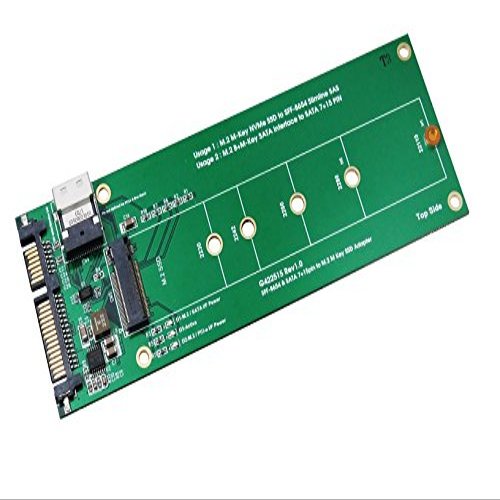

Slimline SAS (SFF-8654) and SATA to M.2 SSD Adapter

Description

• This adapter supports both Slimline SAS (SFF-8654) and SATA interfaces, allowing users to connect M.2 SSDs to a wide range of devices such as servers, workstations, and desktop PCs.
• With support for high-speed data transfer rates, this adapter ensures efficient data transmission between M.2 SSDs and host systems, enabling fast access to files and improved system performance.
• The adapter provides a convenient solution for expanding storage capacity with M.2 SSDs, allowing users to upgrade their systems with high-performance storage solutions for faster boot times, quicker application loading, and enhanced multitasking capabili
• Its compact form factor and slimline SAS connector make it suitable for use in space-constrained environments, such as small form factor PCs and server racks, without sacrificing performance or reliability.
• Micro SATA Cables PN# SLM-1368-M2

Slimline SAS (SFF-8654) and SATA to M.2 SSD Adapter
M.2 NVMe to Slimeline SAS(SFF-8654) Convert Specifications :
M.2 NVMe to Slimeline SAS (SFF-8654) convert
M.2 SATA I/F to SATA convert
Build in M.2 M-key Female connector
Build in SFF-8654 connector, pin-out defined by PCIe
Built in SATA 7+15 Pin connector
PWM synchronous buck converter Power IC
4A maximum output current
Short circuit protection
In-rush current suppression
Thermal shutdown protection
ESD HBM (Human Body Mode)/2KV
D1 Green LED on indicates M.2 SATA I/F power ready
D2 Green LED Blinking indicates M.2 NVMe power ready
D3 RED LED Blinking indicates M.2 SSD active status Specification :
Compliant with NVME Express 1.0A
Supports PCI Express Base Specification Rev 3.0
Supports SSD Form Factor Version 1a
Compliant with PCI Express M.2 Specification Version 1.0
Compliant with SFF-8639 Specification Rev 2.0
Compliant with SerialATA_ Revision_3_2 _Gold s
Compliant with SFF-8654 Rev 1.0
SSD's shown in pictures are for illustration only and are not included. M.2 SSD Form Factor Support :
Supports M.2 Socket SSD type 2242, type 2260, type 2280 and type 22110 D2 - B - M Micro SATA Cables PN # SLM-1368-M2
