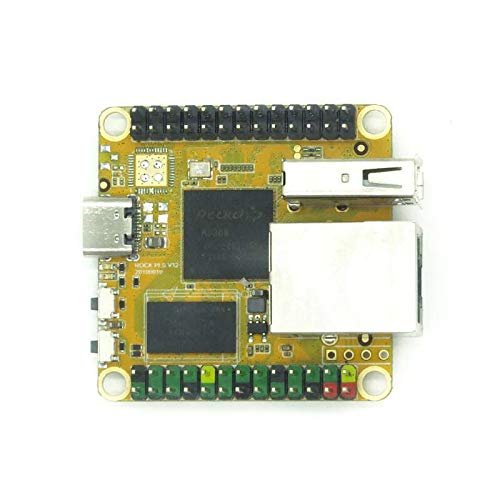

Taidacent Rock PI S Development Board RK3308 Quad-Core A35 64 with VAD Audio Detector for IOT and Intelligent Voice Projects (Single Board, 512MB with Bluetooth with WiFi 1GB)

Description

• Rockchip RK3308 Quad A35 64bit processor with built-in VAD
• 256 / 512MB RAM versions
• USB 2.0 OTG (type C) + USB 2.0 HOST (type A)
• RJ45 10/100Mbit Ethernet
• optional PoE (additional HAT required)

Rock Pi S is a development board designed by the Radxa team based on the RK3308 chip. Equipped with a 64-bit 4-core processor, DDR3 RAM capacity is optional from 256MB to 512MB, this 1.7-inch small board also has USB, network ports, and can choose different models with Bluetooth/wireless modules to meet different project needs . This product is an excellent choice for IoT products and smart speaker products.

Product parameters:
Rockchip RK3308 Quad A35 64bit processor with built-in VAD
256 / 512MB RAM versions
USB 2.0 OTG (type C) + USB 2.0 HOST (type A)
RJ45 10/100Mbit Ethernet
optional PoE (additional HAT required)
802.11 b/g/n Wifi + Bluetooth 4.0 with external antenna connector 26 pin GPIO header
26 pin voice/audio header includes I2S, PCM, TDM, PDM, SPDIF, and HDMI ARC
Size 1.7x1.7inch (~38.1x38.1mm)
Debian and Buildroot succesfully tested
Optional-ROCK Pi S on board storage version with 1Gb/2Gb/4Gb/8Gb NAND flash
CPU does not need any heat management!
