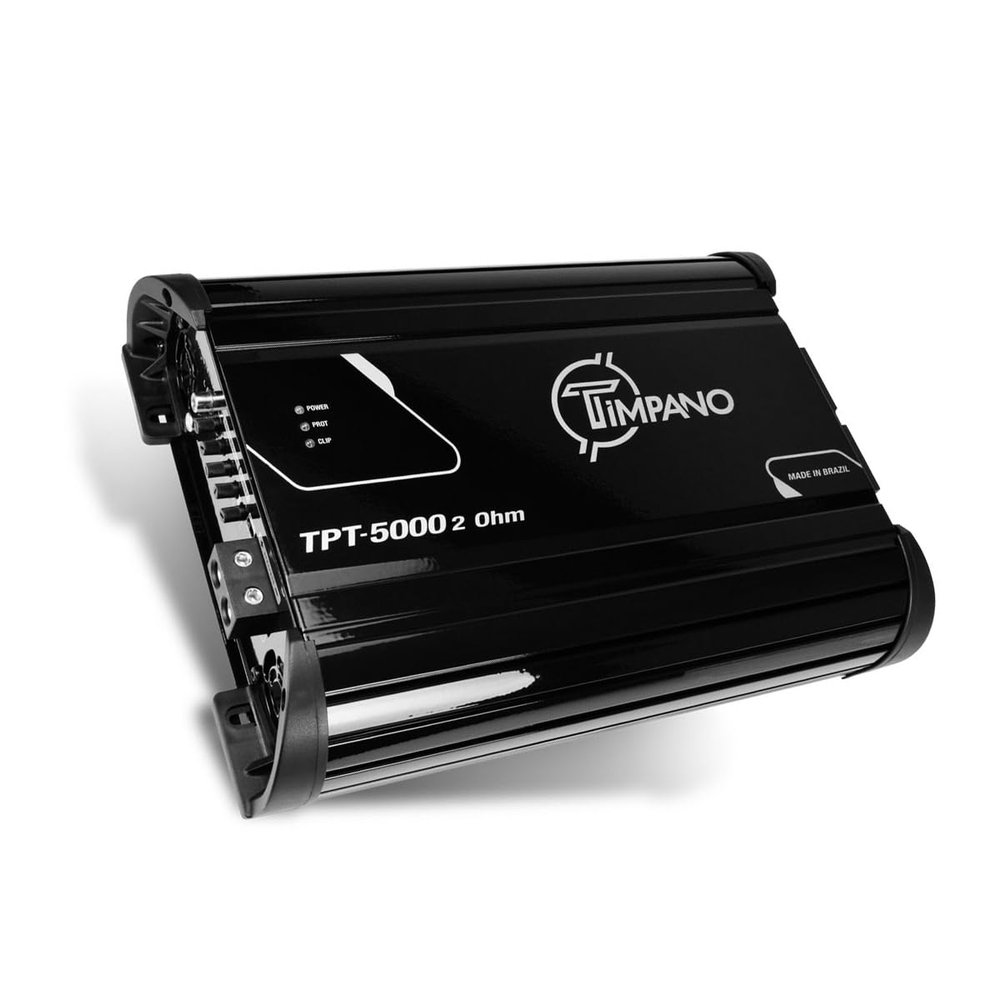

Timpano TPT-5000 2 Ohm Full Range Amplifier - 5000 Watts RMS Class D 1 Channel Amp Built-in Crossovers for Installation of PRO Audio Midbass, Midrange Loudspeakers on Car Audio Systems

Description

• MIDS And HIGHS POWER: This Full Range amplifier is designed to run your system with the power it needs to perform! 5000 Watts RMS power output at 2 Ohm 1 channel. Its high efficiency rate of 89% provides more power with less battery consumption.
• COMPACT DESIGN: Digital class D Brazilian technology allows this car audio amplifier to have a small footprint by integrating a high-speed mosfet power supply with top of line transistors to ensure performance in a small heat sink without compromising performance. Dimensions: 9.36 depth x 12.85 width x 3.05 height
• FEATURES: Heavy duty power and speakers terminals. Built-in variable crossover filters for easy tuning! Set setting for your type of speaker with a HPF 10 to 90Hz and LPF 90 to 12,000Hz without a need for an external crossover or DSP. It also includes Variable Gain Control. Level controls are not for adjusting volume. They adjust the amount of signal that is coming into the amplifier from your signal source.
• TECHNOLOGY: A smart electronic 2-way protection circuit protects the amp if it gets too hot or if speakers fail causing a short! Focusing in sound quality, a full range response of 10 to 12,000Hz was used to give the best sound reproduction on this mids and highs amplifier.

Timpano 5000 Watts Car Audio Amplifier Fullrange TPT-5000 2 Ohm 1 Channel Compact 12 volts Full Range Class D Car Amp
Small Footprint Technology! HD Sound Quality!
Additional Information:
Number of Channels: 1
5000 Watts RMS Power at 2 Ohm 12.6 Volts
2600 Watts RMS Power at 4 Ohm 12.6 Volts
Supply Voltage: 9V ~ 16V
Frequency Response: 10Hz ~ 12KHz
Crossover Low Pass: 90Hz ~ 12KHz
Crossover High Pass: 10Hz ~ 90Hz
Bass Boost Gain: 0 dB ~ +10 dB
Signal to Noise: > 90 dB
Input Impedance: 12K Ohm
Impedance Output: 2 Ohm
Musical Consumption: 230A
Dual 0 Gauge Power Inputs
4 Gauge Speakers Output
Dimensions (L x W x H): 9.36 x 7.46 x 3.05
Weight: 9 Lbs
Features:
The TPT-5000 offer 1 channel Fullrange frequency response from 10Hz to 12KHz allows the installation of Subwoofers, Speakers, and Drivers.
FLAT SWITCH This switch allows you to turn off the CROSSOVER and BOOST controls. Recommended when using a DSP to guarantees an even response output when using multiple amplifiers.
