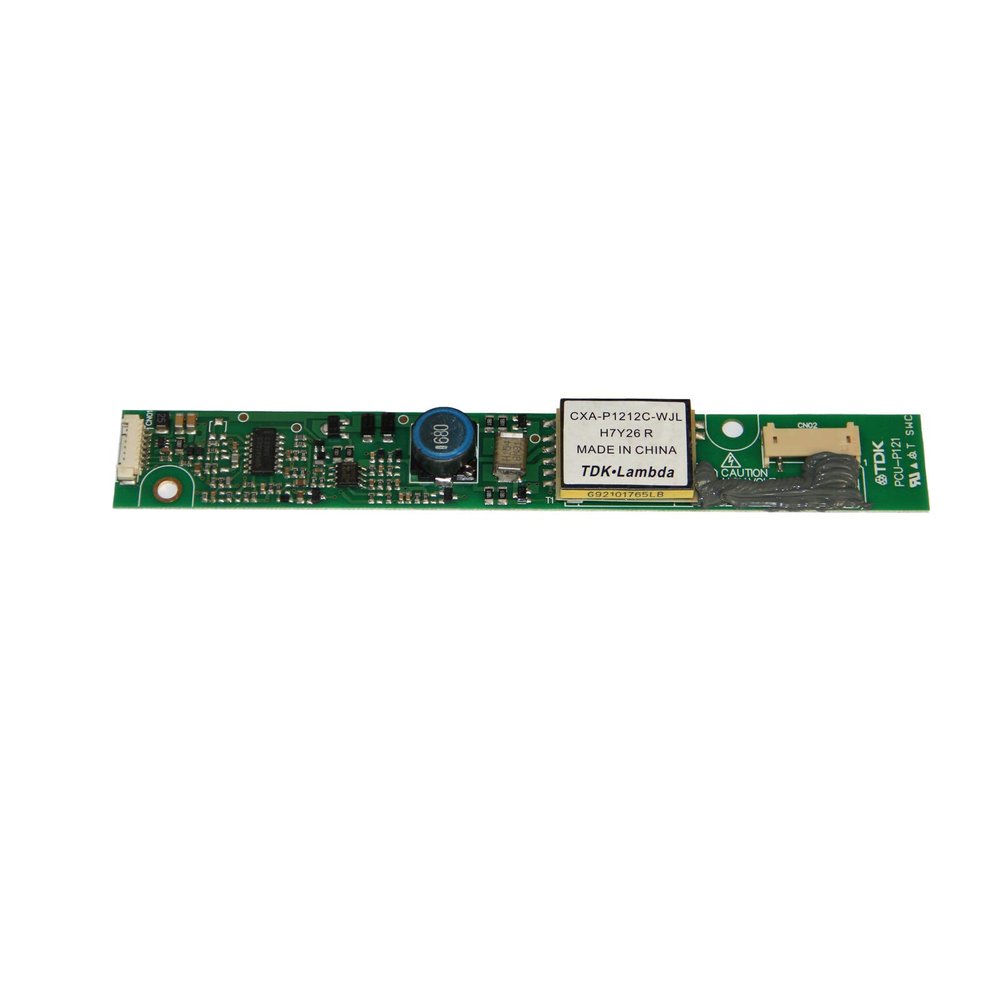

TOSYUWIR Inverter Board CCFL Inverter Backlight Inverter CXA-P1212C-WJL

Description

• 8W DUAL OUTPUTS WITH DIMMING FUNCTION
• Wide operating temperature range
• Alarm signal function
• PWM dimming type.
• Current Feedback Circuit Silicon Coating in High Voltage area.

This low profile DC to AC Inverter is developed for dual lamps, low power LCD backlight. Application includes industrial PC and LCD monitor.
Applicable LCD; 8 to 12 inches double lamp type
Lamp Voltage 600Vrms
Lamp Current 6mArms
Lamp Start Up Voltage 1700Vrms (Vin : 12V) FEATURES:
Wide operating temperature range
Alarm signal function
PWM dimming
Current Feedback Circuit
Silicon Coating in High Voltage area

TEMPERATURE & HUMIDITY:
Operating Temperature Range -10C ~ +60C
Storage Temperature Range -20C ~ +85C
Humidity 95 %RH max
