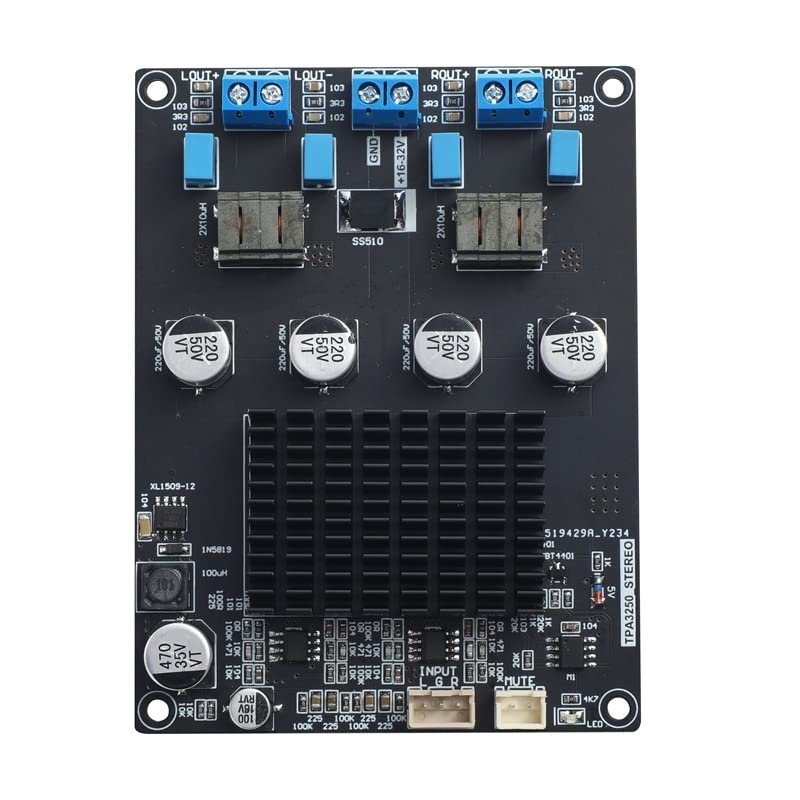

TPA3250 Digital Power Amplifier Board 130W+130W

Description

• Working mode: Class D
• Static current: 50mA
• Working voltage: DC18V to DC32V
• Size: 103 L * 78 W * 15MM H

Product introduction:
The TPA3250 device is a high-performance Class D power amplifier, which can achieve high-quality sound effects with Class D efficiency. The device is equipped with advanced integrated feedback design and proprietary high-speed gate driver error correction (PurePath Ultra-HD) This technology enables ultra-low distortion and superior audio quality in the audio frequency band. The device is powered by 32 V power supply, and can provide up to 2 W x 130 W peak drive for 4 loads, or 2 W x 70 W continuous drive for 8 loads. It also has 2 VRMS analog input interfaces, which can be seamlessly connected with high-performance DACs such as TI PCM5242. In addition to excellent audio performance, the TPA3250 also achieves high power efficiency and power level no-load power consumption of less than 1 W. This is achieved by using 60 m MOSFET and optimized gate driver, which has much lower no-load loss than typical discrete devices
Product details:
1. Imported original TPA3250
2. The main circuit of electrolytic capacitor signal adopts chip electrolytic capacitor capacity 4 220UF, to ensure strong and continuous power support
3. The high precision chip resistor is selected to ensure a good signal-to-noise ratio of the whole machine
4. The PCB is made of 1.6mm thick double-sided plates, 2.0 amperes copper thick, and full tin spraying process to ensure the good passing performance of large and small currents. PCB quality
5. Fully shielded large current inductor is used to ensure clear and powerful sound
Basic parameters:
1. Working mode: Class D
2. Static current: 50mA
3. Work efficiency: 90%
4. Rated output power: 2 * 130W
5. Frequency response: 20Hz to 20KHz
6. Working voltage: DC18V to DC32V
7. Output current: 4A
8. Size: 103 L * 78 W * 15MM H
9. Weight: 0.08
