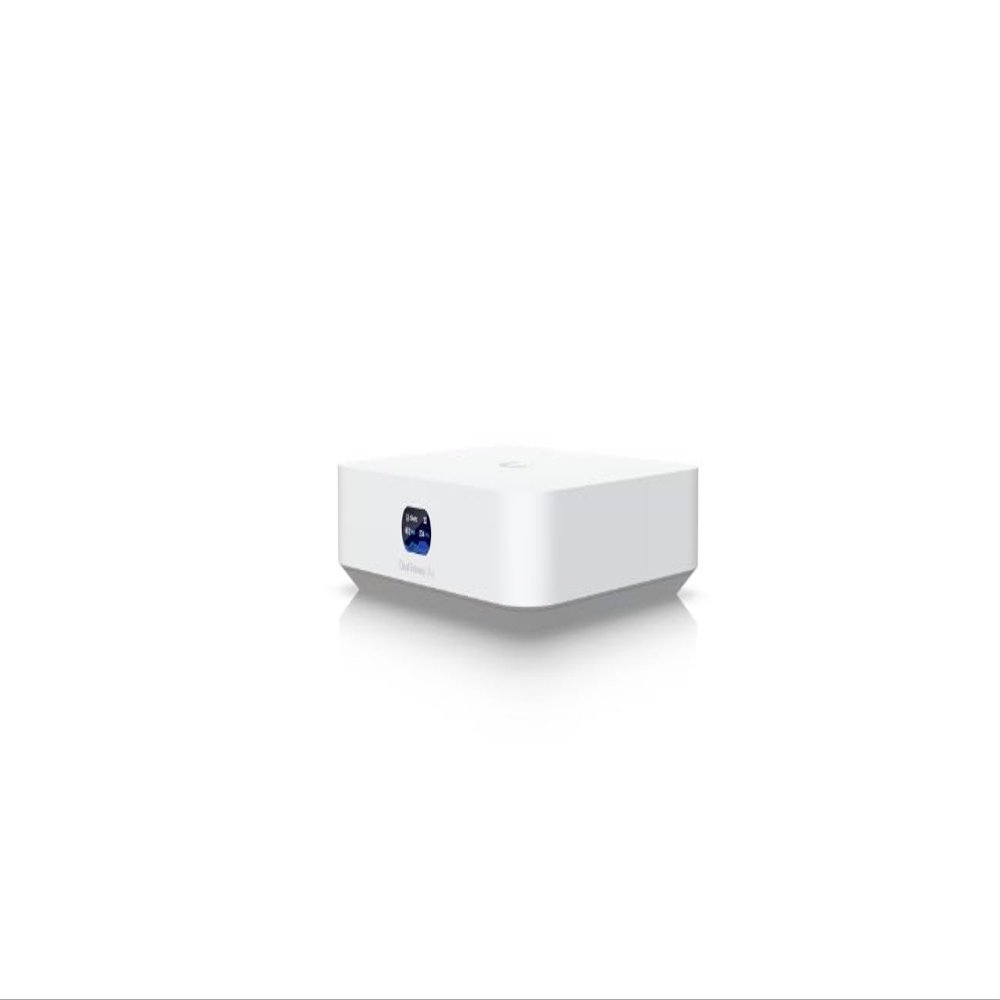

Ubiquity UCG-Ultra Compact Cloud Gateway with Multi-WAN Load Balancing, 1 Gbps IDS/IPS Routing, and Support for 30+ Devices / 300+ Clients

Description

• Compact High-Performance Gateway: Measures 141.8 x 127.6 x 30 mm, weighing 520 g, with a polycarbonate enclosure and integrated 0.96" status display.
• Flexible Port Configuration: Features one 2.5 GbE RJ45 port (2.5G/1G/100M/10M) and four 1 GbE RJ45 ports for optimized WAN/LAN deployment.
• Scalable Network Support: Manages 30+ connected devices and 300+ simultaneous clients with stable performance and mesh compatibility.
• High-Capacity IDS/IPS Protection: Delivers up to 1 Gbps intrusion detection/prevention throughput with over 55,000 CyberSecure signatures for advanced threat mitigation.
• Enterprise-Level Security: Includes stateful firewall, Layer 7 application-aware filtering, DPI, content filtering, ad blocking, VLAN/subnet segmentation, and zone-based firewall rules.
• Multi-WAN and Load Balancing: Supports multiple WAN connections for redundancy and bandwidth optimization, with LTE backup capability.
• Advanced VPN Features: Offers Site Magic site-to-site VPN, IPsec, WireGuard, OpenVPN, Teleport, and L2TP with client and server support, all license-free.
• Robust Networking Capabilities: OSPF dynamic routing, advanced QoS, multicast DNS, advanced NAT, customizable DHCP server, integrated RADIUS with RadSec, and IPv6 ISP support.
• Power-Efficient Operation: Consumes only 6.2W maximum, powered via USB Type-C (5V DC/3A) with included adapter, and supports 100240V AC input.

The UCG-Ultra is a compact yet powerful cloud gateway designed for high-performance routing, advanced security, and multi-WAN connectivity in modern networks. Measuring 141.8 x 127.6 x 30 mm and weighing only 520 g, it supports over 30 managed devices and more than 300 concurrent client connections. Equipped with one 2.5 GbE RJ45 WAN/LAN port and four 1 GbE RJ45 ports, the UCG-Ultra delivers flexible deployment options for both small and medium-scale network infrastructures. With an IDS/IPS throughput of up to 1 Gbps and over 55,000 CyberSecure threat signatures, it offers robust protection through stateful and Layer 7 application-aware firewalls, deep packet inspection, content filtering, ad blocking, VLAN/subnet segmentation, and zone-based security policies. Networking capabilities include multi-WAN load balancing, OSPF dynamic routing, advanced QoS, multicast DNS, advanced NAT, integrated RADIUS with RadSec, IPv6 support, and LTE failover. VPN support is comprehensive, featuring license-free SD-WAN, Site Magic, IPsec, WireGuard, OpenVPN, Teleport, and L2TP in both client and server modes. Powered by a quad-core ARM Cortex-A53 1.5 GHz processor with 3 GB RAM and 16 GB onboard storage, the device operates efficiently at only 6.2W max power consumption via USB Type-C. The integrated 0.96" LCM display provides real-time system status, while its CE, FCC, IC, Anatel, and SRRC certifications ensure reliable and compliant operation.
