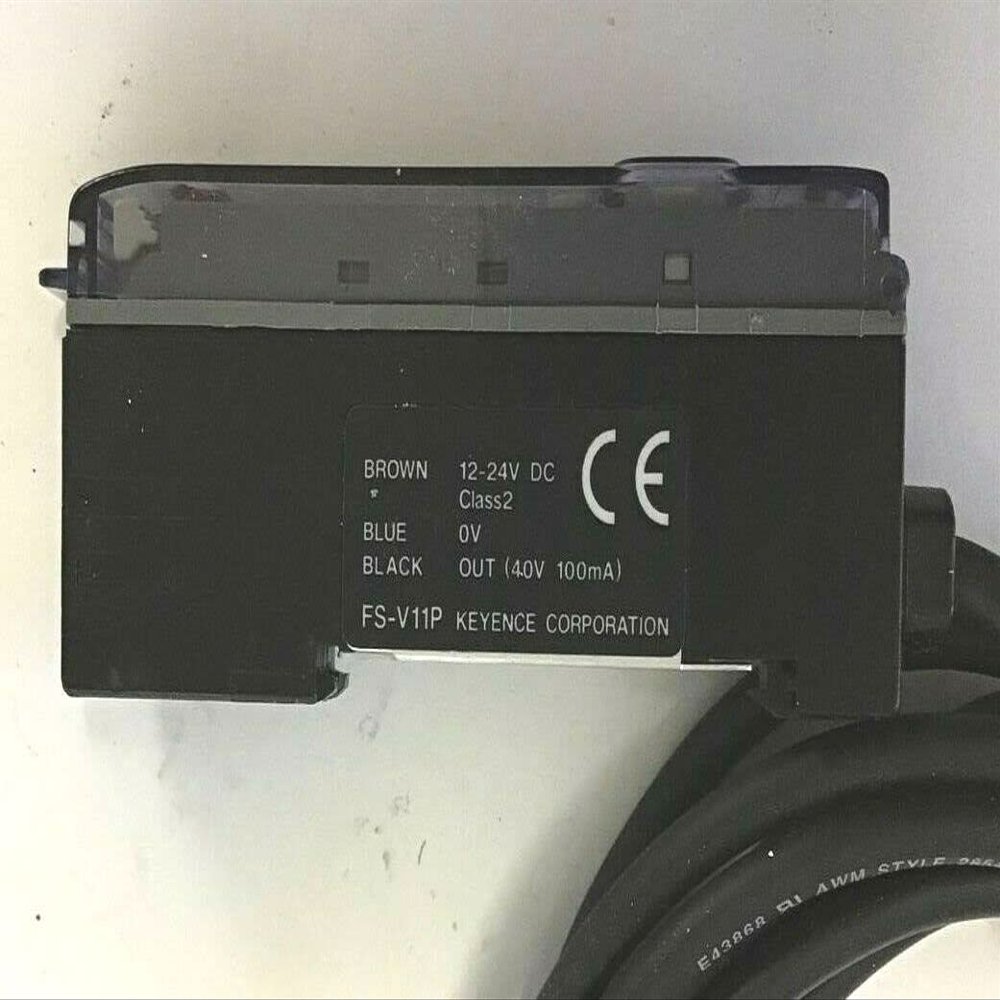

Vanky Industry KEYENCE FS-V11P Fiber Amplifier New

Description

• Model: FS-V11P
• Type: Main unit
• Output: PNP
• Light source: Red LED
• Response time: 250 s (FINE) /500 s (TURBO) /1 ms (SUPER TURBO)

KEYENCE FS-V11P Fiber Amplifier New
Specifications:
Model: FS-V11P
Type: Main unit
Output: PNP
Light source: Red LED
Response time: 250 s (FINE) /500 s (TURBO) /1 ms (SUPER TURBO)
Operation mode: LIGHT-ON/DARK-ON (switch-selectable)
Indicator lamp:
1. Display indicator: Red LED
2. Digital LED monitor: Seven segments, four digits, red LED
3. Bar LED monitor: One orange LED and six green LEDs
Timer function: ON-delay: 40 ms /OFF-delay: 10 ms /Timer OFF (switch-selectable)
Control output: PNP open-collector 100 mA max. (24 VDC max.), Residual voltage: 1 V max.
Protection circuit: Reversed polarity protection, over-current protection, surge absorber
Unit expansion: Up to 16 expansion units can be connected (a total of 17 units).*1.
Mutual interference suppression: FINE : 4, TURBO/SUPER: 8
Rating:
1. Power voltage: 12 to 24 VDC 10 %, Ripple (P-P) 10 % or less*2
2. Current consumption: 50 mA or less
Environmental resistance:
1. Ambient light: Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max
2. Ambient temperature: -10 to +55 C 14 to 131 F (No freezing)
3. Relative humidity: 35 to 85 % RH (No condensation)
4. Vibration resistance: 10 to 55 Hz, Double amplitude 1.5 mm 0.06", 2 hours in each of the X, Y, and Z directions
5. Shock resistance: 500 m/s2, 3 times in each of the X, Y, and Z directions
Case material: Polycarbonate
Weight: Approx. 80 g
