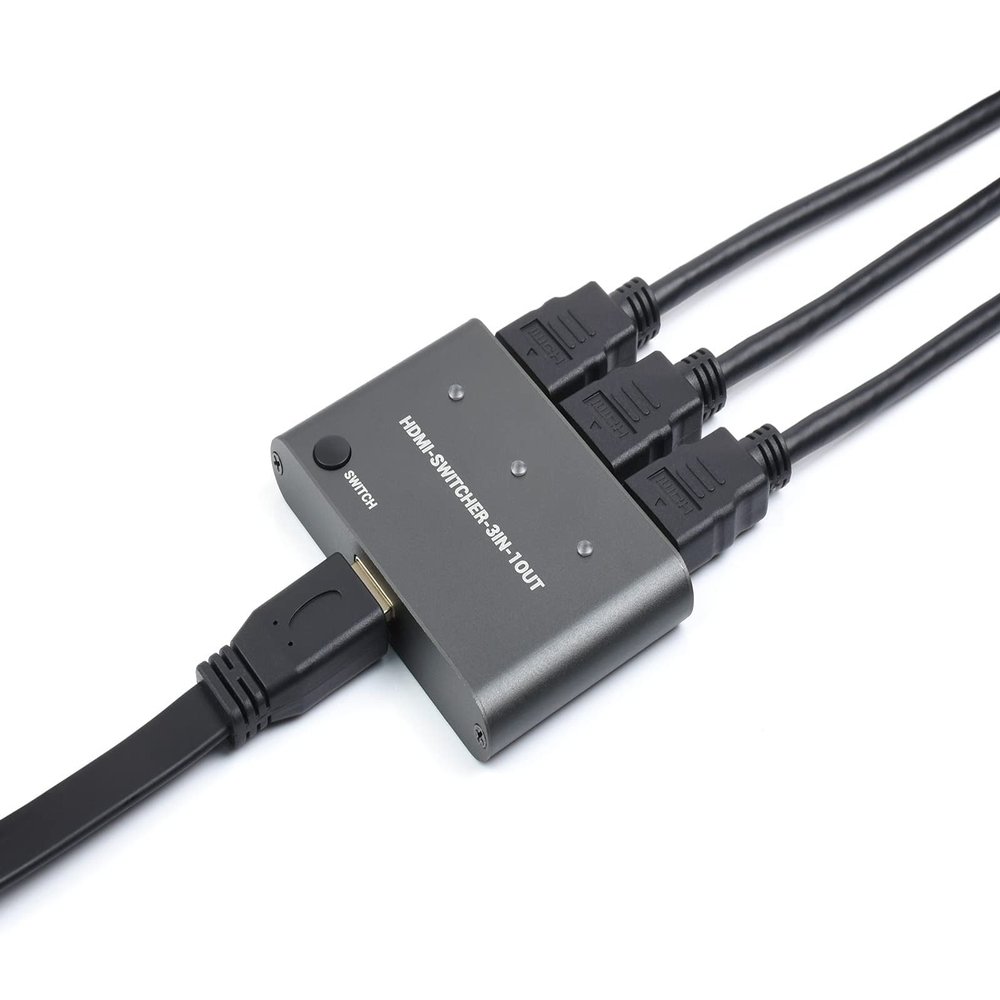

waveshare HDMI Switcher 3 in 1 Out 4K HD HDMI Switcher Splitter,Support 4K/2K@30Hz and 4K/2K (YCbCr420)@60Hz Resolution,HDMI 1.4b,DVI1.0,Compatible with Raspberry Pi, PC, Smartphone

Description

• 3-In HDMI Switcher3 In 1 OutOne-Click Switch4K SupportAllows Multiple Input Devices To Share One HDMI Screen, High-Resolution And Smooth
• One-Click Switch, Flexible & ConvenientJust Press The Switch Button, The Identified Signal Can Be Switched In Turn
• Device SupportAllows Multiple Input Devices To Share One HDMI Screen.Such As Raspberry Pi, PC, Smartphone...
• 4K High-Resolution SupportSupport 4K/2K@30Hz And 4K/2K (YCbCr420)@60Hz Resolution.Clearer & Smoother Image, No Delay In Sound
• High-Speed Transmission, No LagBuilt-In Adjustment Function For Input And Output, Free To Transmit With Different Cables.Data Transfer Speed Up To 3Gbps

Introduction
HDMI-SWITCHER-3IN-1OUT is an HDMI switcher that supports 4Kx2K@30Hz and 4K*2K (YCbCr420) @60Hz resolution HDMI input signals, and the
adjustable drive capability of the equalizer and output at the HDMI input can adapt to different lengths and qualities of cable so that TMDS signals
transmitted at high speeds always have the best performance.

Feature
3-IN HDMI
1-Out HDMI
Support HDMI1.4b and DVI1.0 standard
Support up to 3Gbps
Built-in equalizer in the input terminal can automatically adjust the input terminal
Built-in output driver regulator automatically adjusts the output signal amplitude

Specifications
INPUT INTERFACE
HDMI x 3
Support 4K/2K@30Hz and 4K/2K (YCbCr420) @60Hz resolution
Built-in input Equalizer, can automatically adjust the input signal

OUTPUT INTERFACE
HDMI x 1
Built-in output drive regulator, can automatically adjust the output signal amplitude

INTERFACE STANDARD
Support HDMI 1.4b and DVI1.0 standard
TRANSFER SPEEDUp to 3Gbps

How To Use
Connect the HDMI signal source to the input terminal of HDMI-SWITCHER-3IN-1OUT (the device will automatically identify and turn on the corresponding LED).
Connect the HDMI output terminal to the HDMI receiving device such as the display and so on.
Now the HDMI output is the picture of the HDMI signal source connected at the last time.
Press the switch button, and the device switch to the HDMI signal in order and automatically ignore the unconnected HDMI signal number.

Package Content
HDMI-SWITCHER-3IN-1OUT x1

Note
Technical Support is provided, please contact with us if you have any problem.
