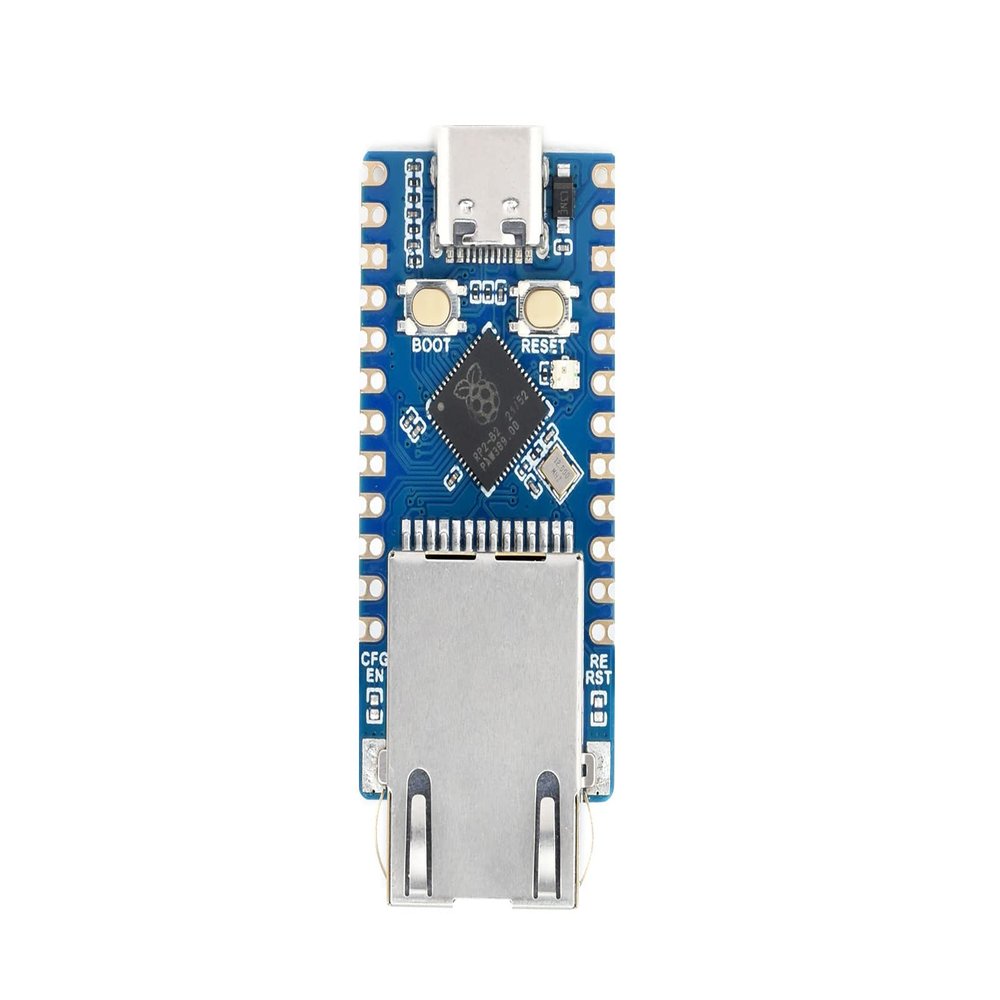

Waveshare RP2040-ETH Mini Development Board, RP2040 Ethernet Port Module, Raspberry Pi Microcontroller Development Board, Based On Official RP2040 Dual Core Processor

Description

• RP2040-ETH Mini Development BoardRP2040 Ethernet port module based on Raspberry Pi RP2040 dual core processor, 264KB of SRAM and 4MB of onboard Flash memory, onboard RJ45 Ethernet port, USB type-c connector
• Multiple Communication Modes SupportRP2040-ETH development board integrates TCP/IP protocol stack for network communication, supports TCP Server / TCP Client / UDP Server / UDP
• 14 Multi-function GPIO PinsCompatible with some Pico HATs, configurable pin function, allows flexible development and integration
• Tiny Size and Easy IntegrationCastellated holes with immersion gold design, highly integrated packaging, supports multiple ways to be embedded into various product applications
• Support C/C++, MicroPython, ArduinoProvide online development resource, comprehensive SDK, Dev resources, tutorials to help you easily get started

Overview
RP2040-ETH is a mini RP2040-ETH development board, which integrates TCP/IP protocol stack for network communication. 14 multi-function GPIO pins and the half-hole process on its PCB edges allow easy and quick integration into projects.

Board specifications
--Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
--264KB of SRAM, and 4MB of onboard Flash memory
--Onboard CH9120 with integrated TCP/IP protocol stack
--14 multi-function GPIO pins, compatible with some Pico HATs
--Castellated module allows soldering direct to carrier boards
--Drag-and-drop programming using mass storage over USB
--Temperature sensor
--8 Programmable I/O (PIO) state machines for custom peripheral support

Package Content
RP2040-ETH x1

NOTE: Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
