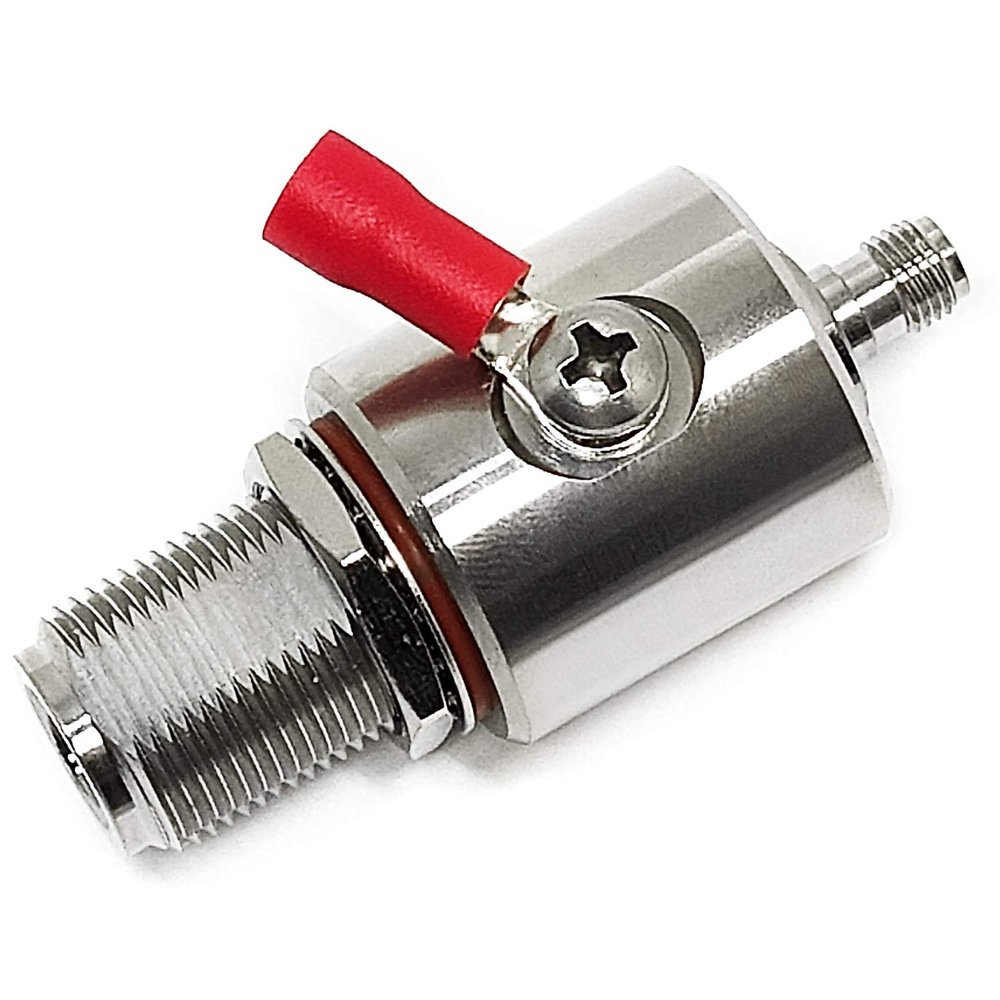

WORLDPEAK Lightning Protector N Female Bulkhead to SMA Female DC-3GHZ 90V Gas Tube WiFi Antenna Discharge Surge Arrester

Description

• lightning surge protector,with N type Female Bulkhead to SMA Female Connectors 50 ohm , broad bandwidth DC-3 GHz Covers 2G 3G and 4G LTE Cellular , Attenuation less than 0.2 dB / VSWR less than 1.2
• Lightning arrestor,50 Ohms Compatible with 50 Ohm Cellular Boosters, CATV, Satellite TV, Protects signal boosters from lightning strikes, Requires additional ground cable
• n connector lightning arrestor,It has a replaceable Gas Discharge Element with High Surge Power Capability and Bi-directional Protection ( 90V Gas tube)
• Antenna lightning arrestor,DC Pass for Remote Powering of Amplifiers and LNA's. Package include: 1 piece surge protector
• Lightning protector should be installed as close a possible to the equipment to be protected, often at the point where the coax cable enters the building. They can also be installed near the antenna for additional protection

Size:Lightning arrestor N Female Bulkhead to SMA female It is a high-performance 50 Ohm coaxial N-Type Lightning Protection that operates over the frequency range of DC-3 GHz. It is ideal for protecting 50 Ohm 2G 3G 4G LTE Cell Boosters and Antennas, as well as 900MHz and 2.4GHz WiFi Access Points and Routers. 1.Materials & Plated: Body brass nickel plated,Teflon(PTFE) Insulator for a reliable signal every time Connectors: N Female Bulkhead to SMA female 50 ohm RoHS compliant 2.Electricail Characteristics Contact Resistance:Center conductor 1m, Outer conductor 1m Max Power:50W Insulation Resistance : 5000M Durability : 500 cycles Temperature range: -40C to +85 C Frequency Range up to 3 GHz Attenuation is less than 0.2 dB VSWR less than 1.2 3.Package include: 1 piece surge protector 4. Protects signal boosters from lightning strikes Prevent a lightning strike from destroying your electrical system. The 50 ohm Arrester with N Female Bulkhead to SMA female Connectors can be installed to prevent expensive damage from incapacitating your circuitry. The arrestor safeguards your amplifier and boosted devices from power surges caused by lightning strikes to antennas mounted outside coaxial lightning arrester should be installed as close a possible to the equipment to be protected, often at the point where the coax cable enters the building.
