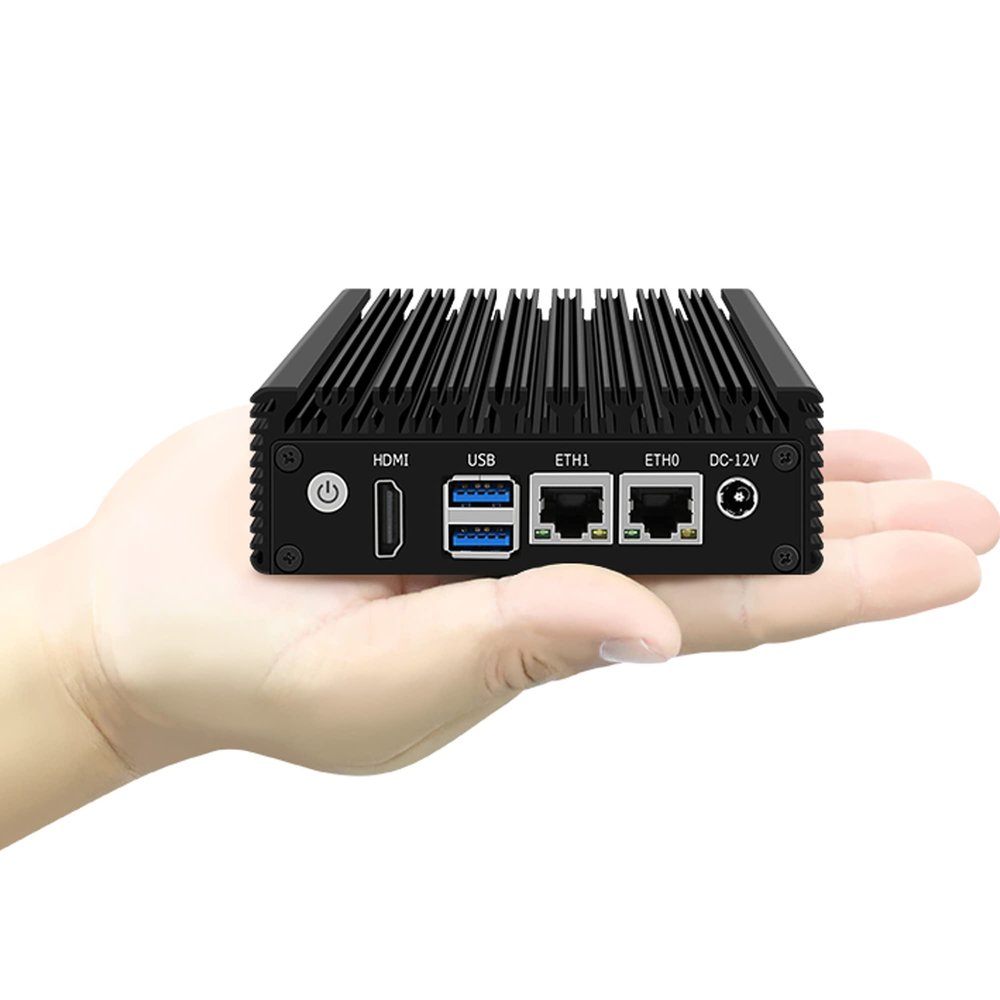

X86-P1N3050/N3160/N3700 Mini Router Low Power Consumption Quad Core Four Threads Fanless (N3700, 4G memory/32G hard disk)

Description

• Package: 1pcs* N3700, 4G memory/32G Hard Disk
• Based on RBraswell architecture 14nm process heat generation and low power consumption only 6W
• Dual network port design onboard RTL8111H full Gigabit network card chip
• Support single SO-DDR3 8GB memory /Support dual USB3.0 ports
• Support 1 mSATA+ (SATA3.0 needs additional power supply for hard disk)
• Onboard a 4Pin CPUFAN fan power supply seat with temperature control
• The whole machine has no fan passive cooling, dustproof and zero noise.

Product introduction

CW-x86-N3050-P1
-CPU: Celeron R N3050
-Main frequency: 2M Cache, up to 2.16 GHz
-Core: 2 cores 2 threads
-Network card: Realtek RTL8111H
-Memory: SO-DDR3 1333/16ooMHZ
-Hard disk: mSATA\SATA3.0
-Graphics card: HD Graphics N3000
-Display: HDMI 1.4

CW-X86-N3160-P1
-CPU: Celeron R N3160
-Main frequency: 2M Cache, up to 2.24 GHz
-Core: 4 cores 4 threads
-Network card: Realtek RTL8111H
-Memory: SO-DDR31333/1600MHz
-Hard disk: mSATA\SATA3.0
-Graphics card: HD Graphics 400
-Display: HDMI 1.4

CW-x86-N3700-P1
-CPU: Pentium RN3700
-Main frequency: 2M Cache, up to 2.40 GHz
-Core: 4 cores 4 threads
-Network card: Realtek RTL8111H
-Memory: SO-DDR3 1333/1600MHz
-Hard disk: mSATA\SATA3.0
-Graphics card: HD Graphics N3000
-Display: HDMI 1.4

Backplane I/O:
-1DC_IN power supply interface
-2LAN interface
-1 x HDMI interface
-1Double-layer USB3.0 interface
-1 x PWR_BTN button

Onboard I/O: 1X 10pin GPIO interface (four in and four out) 1X CPU FAN (4pin 5V power supply with temperature control)
BIOS: AMI BIOS supports network boot (PXE), wake-up on LAN (WOL), watchdog programming, GPIO

Power supply mode: DC-IN 12V
Motherboard size: 90mm X 90mm
Working temperature: -10C~70C
Working environment: 5%~90% relative temperature, no condensation
