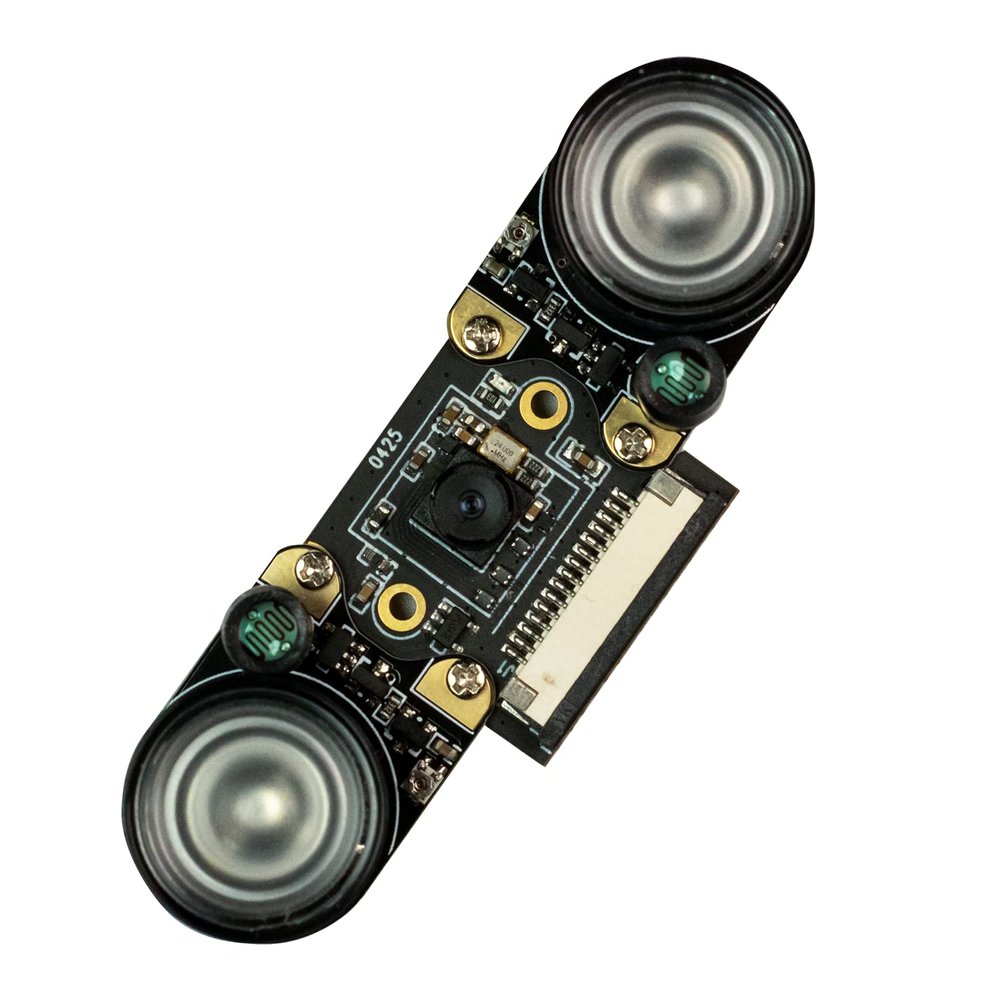

xicoolee for Jetson Nano IR Camera IMX219 8MP with IMX219 Sensor 8 Megapixels Fixed-Focus 120 Degree FOV Infrared Night Vision 3296 * 2512 Resolution 15P-1.0 MIPI Interface 30 fps

Description

• The IMX219-120 is equipped with CMOS image sensor IMX219 supporting infrared complement light, ISP (image signal processing), high-speed video shooting, lens shading compensation function
• This IMX219 8MP 120 camera sensor adopts HD camera,8 Megapixel, fixed focus 120 degrees wide angle of view, supporting for Jetson Nano developer kit
• Lens Specifications: CMOS Size: 1/4"; F/No: 2.2; EFL: 2.4mm; FOV: 120 degrees; Maximum Resolution: 3296x2512; Supply Voltage: 3.3V(pin15)
• The IMX219 8MP camera module adopts 15P-1.0 MIPI interface, weights only 3g, compact size
• This camera meets the basic functional requirements of high sensitivity, high frame rate shooting for high-performance photography applications, suitable for AI projects such as: face recognition, road mark detection and License plate recognition etc.

Overview:

This IMX219-120 night vision camera module adopts IMX219 CMOS image sensor. The HD camera has 8 Megapixel, excellent anti blurring characteristics,
onboard 15P-1.0 MIPI interface, weights only 3g, adopts fixed focus mode(night vision can add infrared fill light), compabile with Jetson Nano operating system.

Specifications:

Size: 25mm(Length)*24mm(Width)*6mm(High)0.2mm
Temperature(Operation): -2070
Temperature(Stable Image): 050
Assembly Technique: SMT(ROSH)
Focus: Fixed
Object Distance: 30CM-Infinity
Resolution: 800LW/PH(Center)
Interface: 15P-1.0 MIPI
Supply Voltage: 3.3V(pin15)
Operating System: Jetson Nano
Sensor: IMX219 (1/4")
Sensor Package: PLCC, Bare Die
Maximum Resolution: 3296*2512
Sensitivity: 600mv/(lux-sec)
Pixel Size: 1.12m x 1.12m
Maximum Image Transfer Rate: 30 fps for QSXGA
S/N Ratio: 39db
Dynamic Range: 69db
Output Formats: 8/10bit RGB RAM Output
Lens Construction: 4P
F/No: 2.2
EFL: 2.4mm
BFL(Optical): 1.16mm
FOV: 120
Relative Illumination(Sensor): 70%
IR Filter: 65010nm
Package: Anti-electrostatic tray
Infrared Fill Light Lamp: Equip

Package Contents:

1. IMX219-C8M-120-NV(Night Vision) x1
2. 15P-1.0 MIPI connecting cable x1
3. Infrared fill light board 2PCS x1
4. Screws x4
5. Nuts x4
