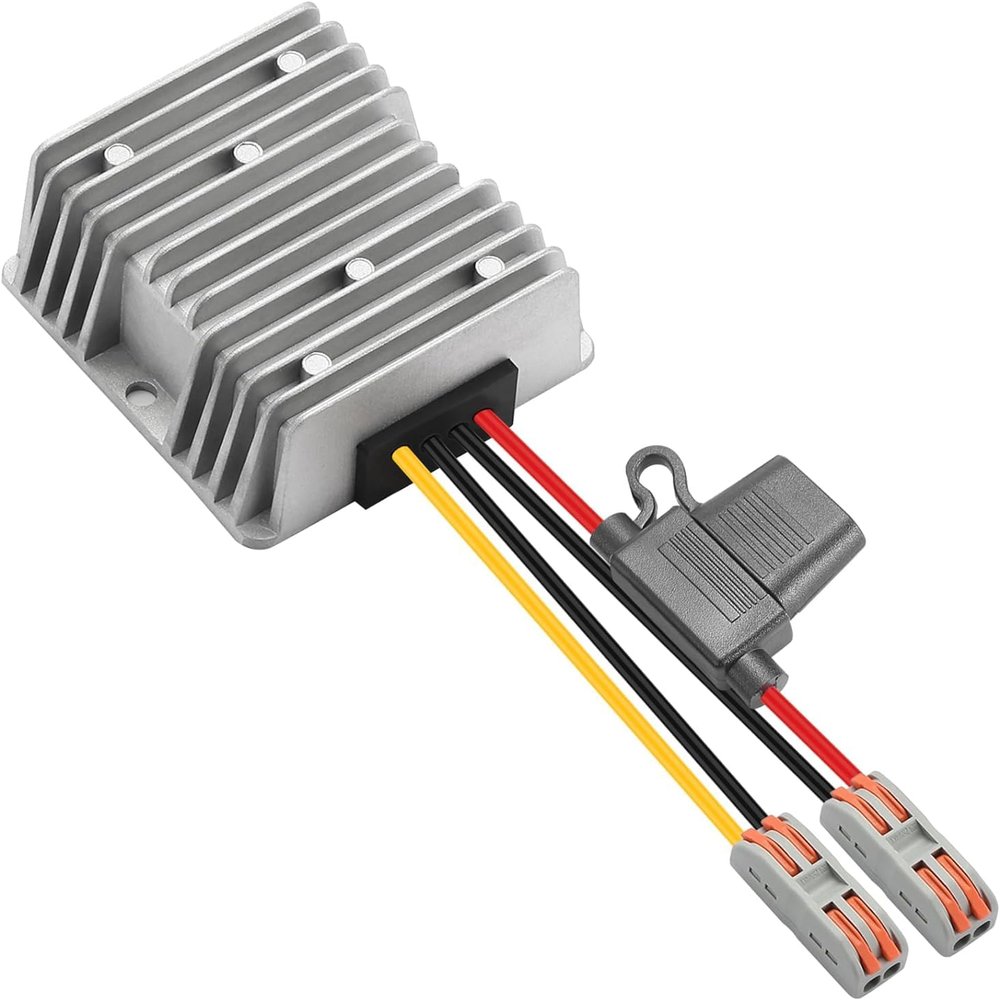

YABOANG DC/DC 9V-32V to 12V Buck Converter, 10A 120W MAX Power Transformer, Waterproof 24V Step Down Power Converter Module for Golf Cart RC Car Truck Light & DIY

Description

• 9V to 12V Voltage BoosterInput range:9V to 32V; output voltage : 12V(fixed output) output current : 10A output power : 120W (MAX). Be sure to insulate the wire 0.4 inches (10 mm or so) and insert it into the plug when installing.
• Heat Dissipation PerformanceThe DC 24V to 12V Step-Down Converter has IP67 waterproof classification, compact aluminum housing, epoxy resin potting, 100% waterproof, dustproof, shockproof, better heat dissipation performance.
• Intelligent ProtectionAssembled with smart chip, equipped with intelligent overcurrent/overload/low load/short circuit/overheat protection by using the DC 32V to 12V power transfomer voltage.
• Widely ApplicationThe 18V to 12V DC voltage converter is widely used in the fields of automotive, photovoltaics, industrial plants, motor vehicles, boats, agricultural machinery, camping, mobile structures, hobby and DIY etc.
• Please NoteThe load connected to the transformer converter output should not exceed the specified maximum load. (Any greater load will damage the buck converter).The 24V to 12V DC power converter adapter does NOT have input reverse protection, pay attention to the input correct, negative reverse, will lead to permanent damage to the product.

A. Test the environmental conditions
B. Unless otherwise specified, the tests in this specification shall be conducted
under the standard atmospheric conditions tested
C. temperature:15~35.
D. Relative humidity: 45%~75%
E. The instrument accuracy of the measured voltage shall not be less than 0.5 level, and the internal resistance shall not be less than 10 K / V.
F. The instrument accuracy of measuring current shall not be less than the 0.5 level
G. The accuracy of the instrument used for measuring the temperature shall not be less than 1
Input range:9-32V

Rated input voltage:12V

transfer efficiency:95%

incoming line:15-16CM(R+ B-)

output voltage:12V

output:10A MAX

maximumoutput:120W MAX

No-load adjustment rate:1%

load regulation:2%

quiescent dissipation:20MA

Do not use it near a heat source (such as a fire or a heater)
Do not connect the input line to 220V electricity
Do not put the product into the fire or heat it
Do not short-circuit the positive or negative poles of the product with wires or other metal objects
Non-professional personnel are prohibited to disassemble and repair by themselves
