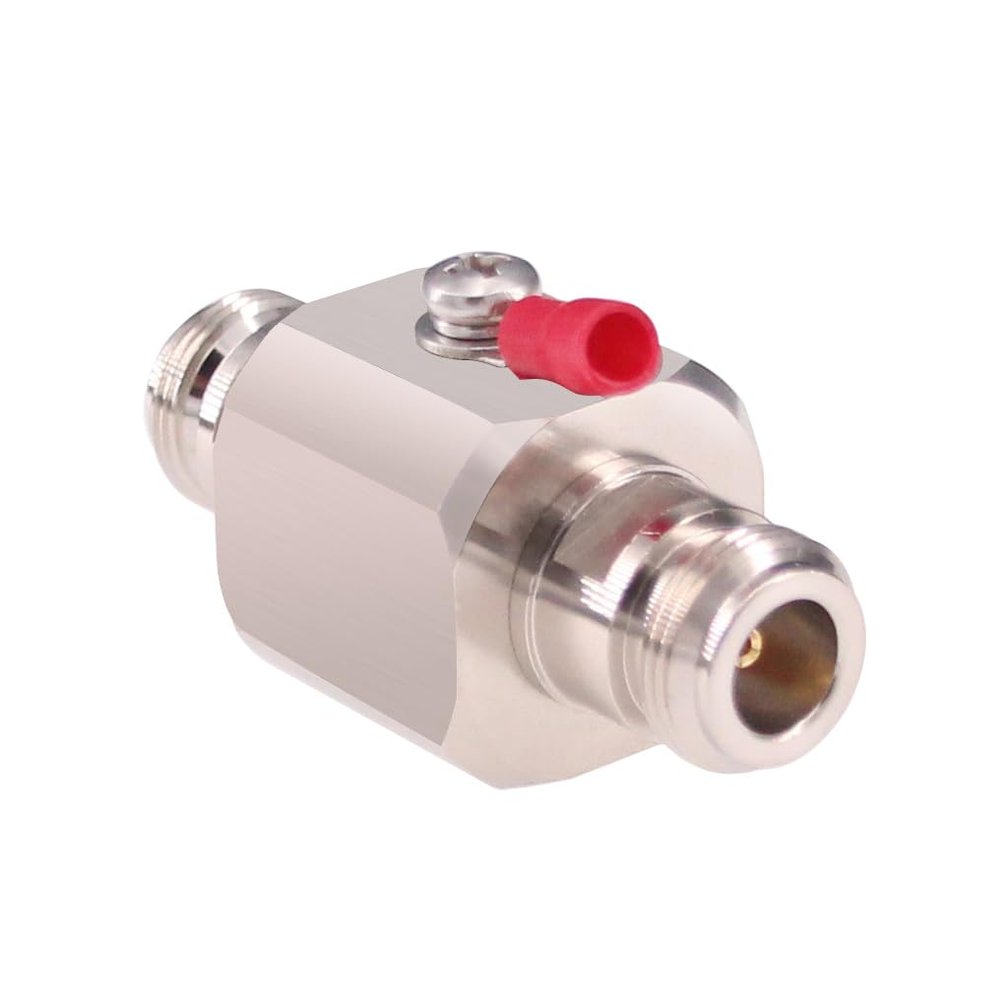

Yuelulala 1pc Coaxial Lightning Arrestor N Lighting Protection Device N Female to Female Connector with 90 V Gas Tube DC-3Ghz 50 Ohms(L11)

Description

• Lightning Arrestor N Female to N Female Connectors
• Low Loss and VSWR and 50 Ohms Impedance
• Operating Frequency DC-3 GHz, DC Pass for Remote Powering
• It has a replaceable gas discharge element with High Surge Power Capability ( 90V Gas tube)
• Installed as close as possible to the equipment to be protected, also could be installed near the antenna for additional protection

It has standard 50 Ohm with N-Female to N-Female coaxial connectors.
It is a coaxial N Surge Protector, operates over the frequency range of 0-3 GHz.
Designed to be placed between amplifier and outside antenna cable connection, need to be grounded. (DC Pass)
It is ideal for protecting 50 Ohm 2G 3G 4G LTE Cell Boosters and Antennas, as well as 900MHz and 2.4GHz WiFi Access Points and Routers.

Material:
Body: brass nickel plated
Pin: Body brass gold plated
Insulator: Teflon(PTFE)

Specifications:
Connectors: N Female to N Female
Impedance: 50 ohm, specifically for 50 ohm systems
VSWR: 1.2
Insertion Loss: 0.2dB
Frequency Range: DC - 3 GHz
Temperature range: -40C to +85 C
Insulation Resistance: 5000M Durability: 500 cycles
Contact Resistance: Center conductor 1.5m, Outer conductor 1m

Package Include:
1pc N Female to Female Lightning Arrestor surge protector
