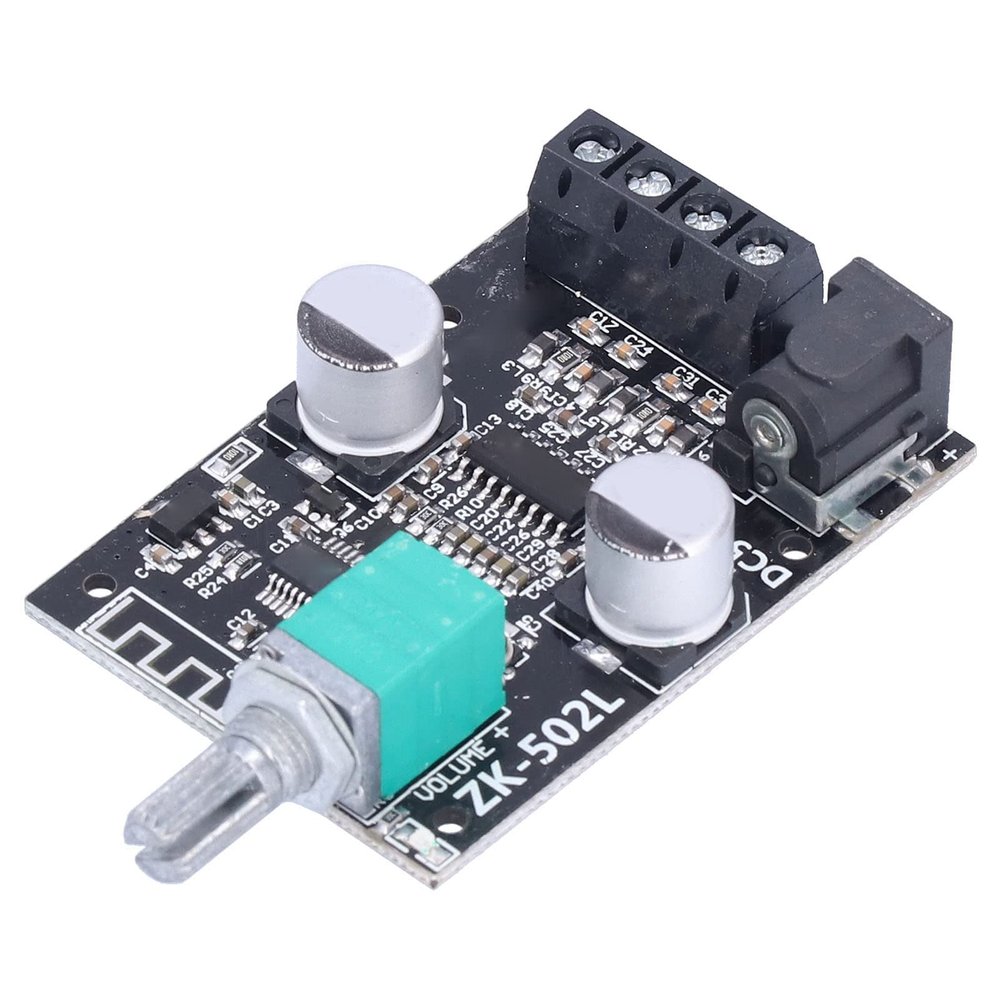

ZK502L Bluetooth Amplifier Board, BT 5.0 Stereo Digital Audio Amplifier Module for DIY Speakers, DC 5-24V

Description

• The amplifier module is equipped with a terminal block and a DC 2.1mm socket, which is compatible with most laptop power ports. Can directly connect to cordless Bluetooth 5.0. and compatible with a variety of speakers.
• The built in filter capacitor of this digital power amplifier module makes it available for processing sound Knob potentiometer design, convenient to adjust power ON and OFF, V+ and V.
• Two 20W, 30W or 50W power amplifier boards are equipped with various speakers (4 to 8 ), and support Bluetooth stereo audio input and AUX audio input.
• Adopt acrylic protective shell design, with reverse connection protection, overvoltage protection, undervoltage protection, over temperature protection, short circuit protection. Self recovery overheating protection.
• This bluetooth speaker power amplifier board has no POPs sound when powering on, skipping songs and pausing. It is widely used in refitting speakers, power amplifier equipment, and car Bluetooth equipment.

Spec:
Item Type: Power Amplifier Board
Material: PCB
Purpose: Digital Power Amplifier Board
Model: ZK-502L
Bluetooth Version: 5.0
Input Method: Bluetooth
Number Of Channels: Left and Right Channels (stereo)
Bluetooth Version: 5.0 (Unobstructed, Approx. 15m/49.2ft)
To Noise Ratio: >90 dB
Adapted Power Supply Voltage: 5-24V (optional 9V/12V/15V18V/24V and Other Adapters, High Power Recommended High Voltage)
Adapted Speakers: 30W-200 W, 4-8
Power supply voltage:
12V-8 /12W+12W, 4 /20W+20W
15V-8 /18W+18W, 4 /30W+30W
19V-8 /32W+32W, 4 /45W+45W
24V-8 /38W+38W, 4 /50W+50W
Mechanism: Self Recovery Overheating Protection, Self Recovery Short Circuit Protection

Package List:
1 x Power Amplifier Board
1 x Screwdriver
9 x Screw
4 x Brass Connecting Rod
2 x Acrylic Board
1 x Knob
1 x Cable

Notice:
The input voltage cannot exceed 24V, otherwise the audio amplifier module will be damaged.
